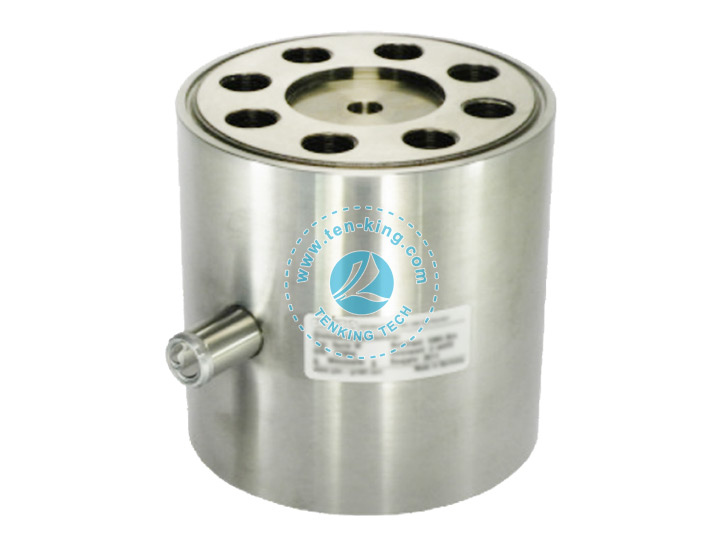

9033 Static torque sensor
Range: 0.2, 0.3, 0.5, 1, 1.5, 2, 4, 5, 6, 10kN.m
Body material: alloy steel nickel plated / stainless steel
Comprehensive accuracy: 0.05%
Cable length: 3m
The torque measurement sensor 9033 is a very wide range of sensors that are used for discontinuous rotational torque measurements. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. This product offers a wide range of ranges and easy installation.
|

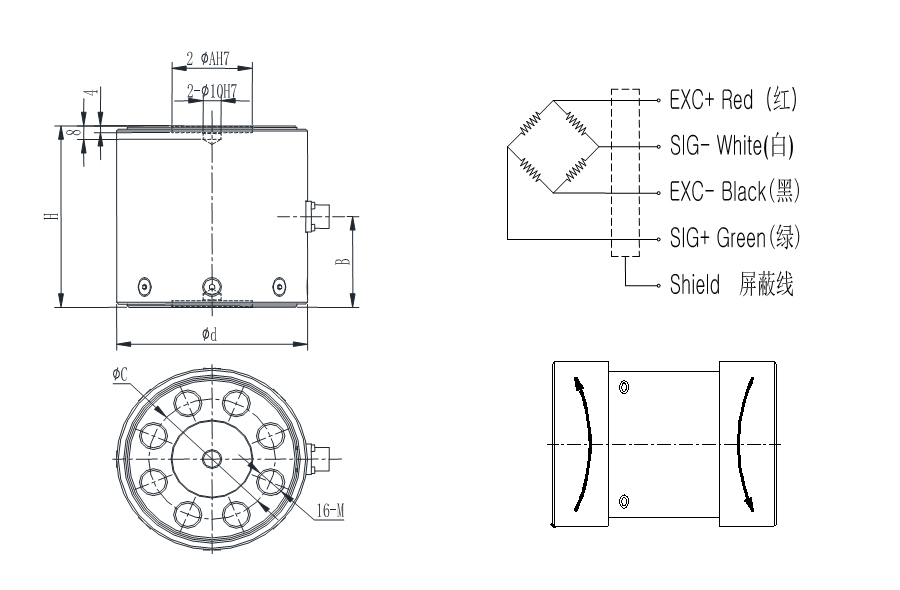

Cap（kN.m） |
H |
d |
A |
B |
C |
M |
|
0.2,0.3,0.5 |
82 |
73 |
30 |
41 |
45 |
M10↓15 |
|
1,1.5,2 |
107 |
107 |
45 |
54 |
71 |
M16↓22 |
|
4,5,6 |
130 |
141 |
60 |
65 |
95 |
M20↓25 |
|
10 |
170 |
205 |
120 |
85 |
155 |
M24↓35 |
|
Specifications |
Technique |
|
Capacity |
0.2,0.3,0.5,1,1.5, 2,4,5,6,10kN.m |
|
Rated output |
2.0±10%mV/V |
|
Combined Error |
0.05%F.S |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.05%F.S. |
|
Hysteresis |
0.05%F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.1%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
410/750±20Ω |
|
Output impedance |
350/700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ4×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP65 |
