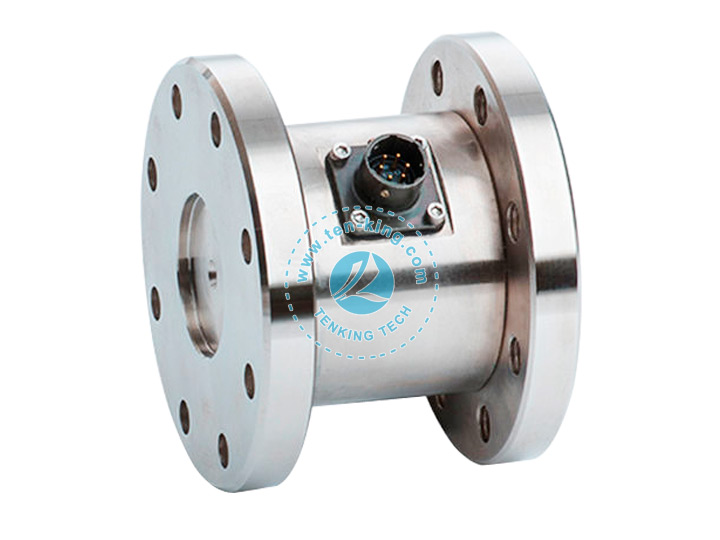

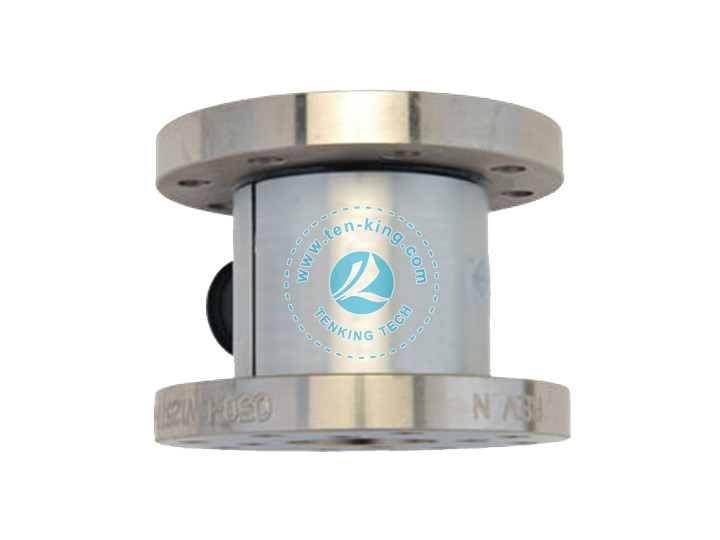

9034 Static torque sensor
Range: 0.2~5000N.m
Body material: alloy steel
Comprehensive accuracy: 0.1%
Cable length: 4m
The torque measurement sensor 9034 is a very wide range of sensors that are used for discontinuous rotational torque measurements. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. This product offers a wide range of measurements and is easy to install. It is one of the commonly used torque sensors.
|

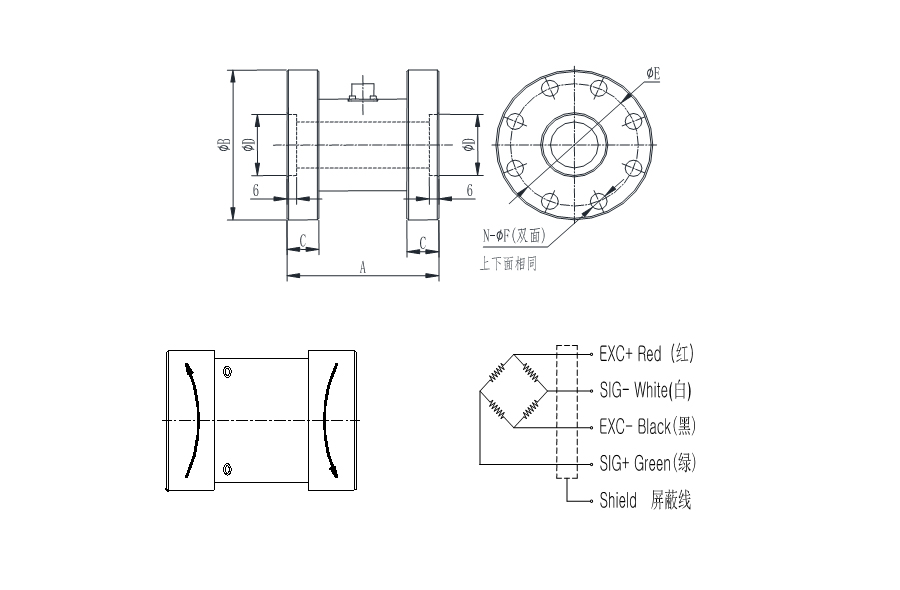

Cap（N.m） |
A |
B |
C |
D |
E |
M |
|
0.2,0.3,0.5,1,2,3,5 10,20,30,50,100 |
85 |
59 |
10 |
22 |
49 |
8-Ф6.5 |
|
100,200,300,500,1000 |
95 |
98 |
20 |
40 |
80 |
16-Ф10.5 |
|
2000,3000,5000 |
95 |
125 |
20 |
50 |
105 |
16-Ф12.5 |
|
Specifications |
Technique |
|
Capacity |
0.2~5000N.m |
|
Rated output |
1.5±20%mV/V |
|
Combined Error |
0.1%F.S |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.1%F.S. |
|
Hysteresis |
0.1%F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.1%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
410±20/785±20Ω |
|
Output impedance |
350±10/700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ4×4000mm |
|
IP Class |
IP66 |
