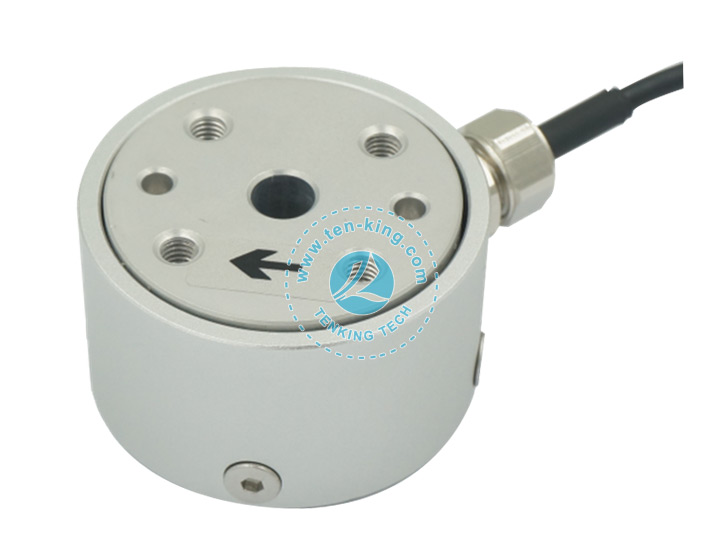

9032 Static torque sensor
Range: 1/2/3/5/6/10/ 20/30/50/100N.m
Body material: aluminum alloy
Comprehensive accuracy: 0.2%
Cable length: 4m
The torque measuring sensor 9032 is a very wide range of sensors that are used for discontinuous rotational torque measurements. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. This product offers a wide range and easy installation. It is one of the commonly used small-range torque sensors.
|
Specifications |
Technique |
|
Capacity |
1,2,3,5,10, 20,30,50N.m |
|
Rated output |
1.5±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.2%F.S. |
|
Hysteresis |
0.2%F.S. |
|
Repeatability |
0.1%F.S. |
|
Creep(30min) |
0.1%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
410±20Ω |
|
Output impedance |
350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
120%F.S. |
|
Cable size |
φ3×4000mm |
|
Material |
aluminum alloy |
|
IP Class |
IP65 |
