3231 Column sensor
Range: 20, 50, 100, 200, 300, 500, 1000N
Body material: aluminum alloy / alloy steel
Comprehensive accuracy: 0.03%
Cable length: 5m

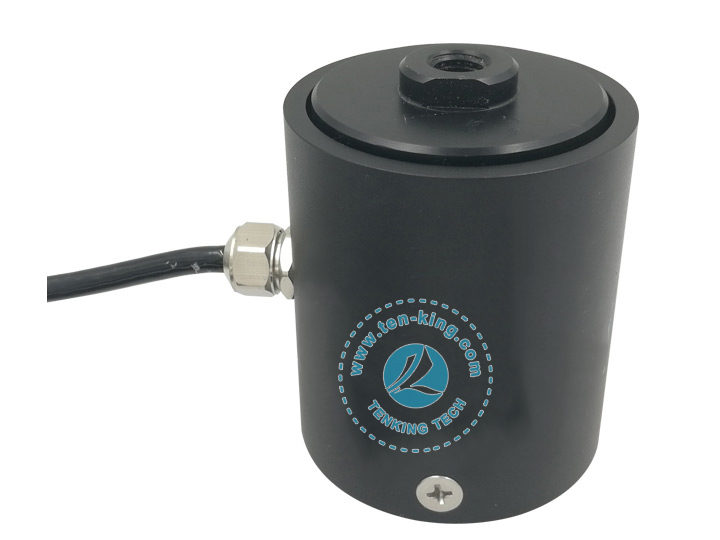

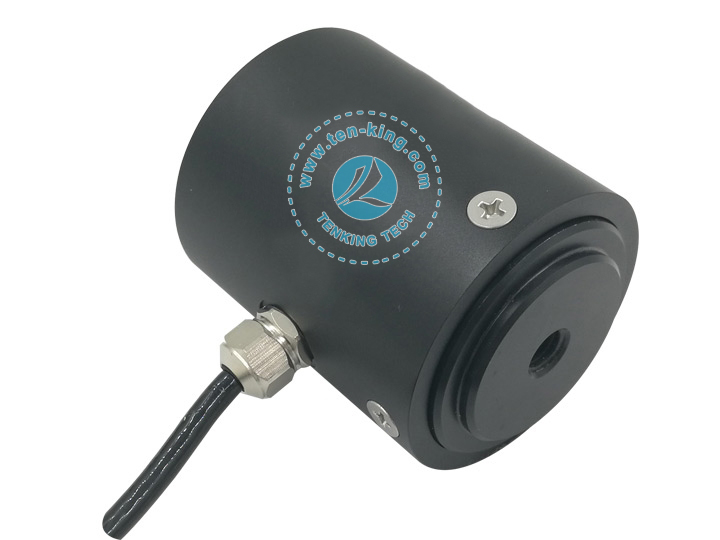

3231 is a high-precision column type sensor with cylindrical structure, high precision and beautiful appearance. It is often used in push-pull test equipment, hook scale, button test system, platform weighing and so on. Other specification ranges can be customized.
|

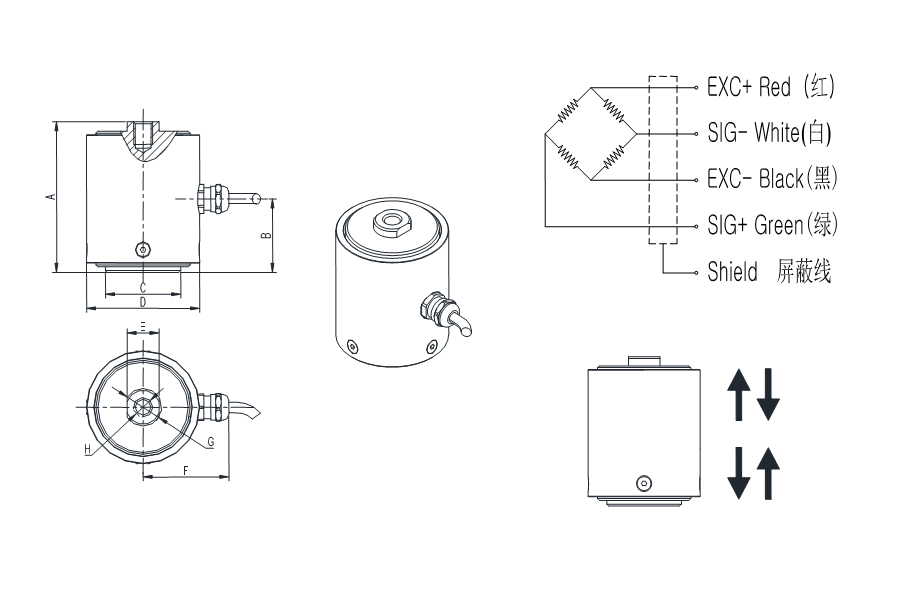

Cap（kg） |
A |
B |
C |
D |
E |
F |
G |
H |
|
5kg~500kg |
80 |
39 |
Φ40 |
Φ60 |
17 |
77 |
Φ20 |
2-M10×1.5深12 |
|
1t~5t |
120 |
54 |
Φ40 |
Φ60 |
30 |
77 |
Φ36 |
2-M20×1.5深20 |
|
Specifications |
Technique |
|
Capacity |
5, 10, 20, 50, 100, 200, 250, 500 1000, 2000, 3000, 5000kg |
|
Rated output |
2.0±2.5%mV/V |
|
Combined Error |
0.03%F.S |
|
Zero balance |
0.02mV/V |
|
Non-linearity |
0.03%F.S. |
|
Hysteresis |
0.03% F.S. |
|
Repeatability |
0.03%F.S. |
|
Creep(30min) |
0.03%F.S. |
|
Temp.effect on output |
0.02%F.S./10℃ |
|
Temp.effect on zero |
0.02%F.S./10℃ |
|
Input impedance |
385±50Ω |
|
Output impedance |
350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~70℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ5×3000mm |
|
Material |
Aluminum 5~500kg Alloy steel 1~5t |
|
IP Class |
IP66 |
