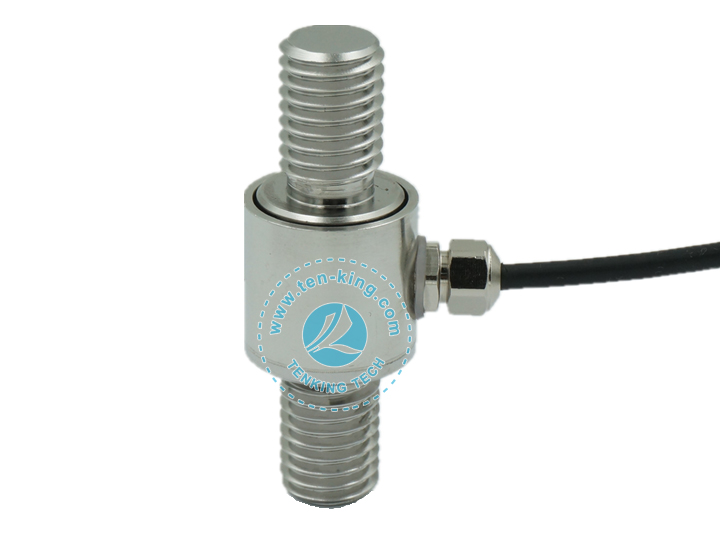

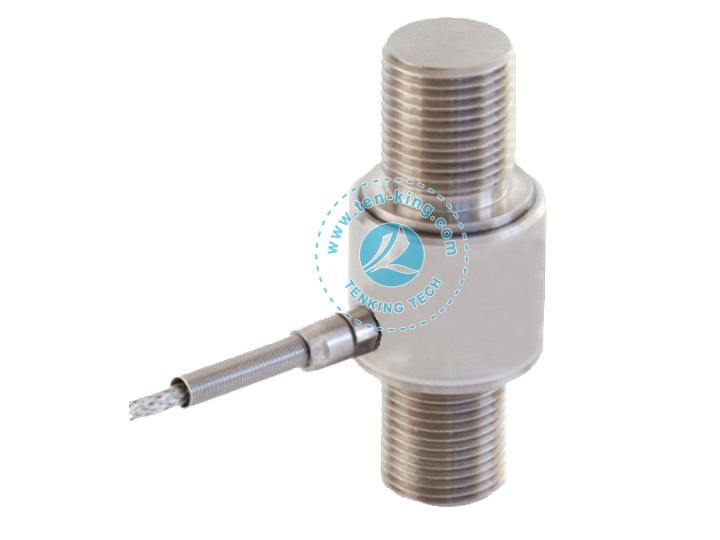

3261 Screw type sensor
Range: 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000 kN
Body material: stainless steel / alloy steel
Comprehensive accuracy: 0.1%
3261 is a double-head stud force measuring sensor, screw type structure, easy to install, often used in push-pull force experimental equipment, material testing machine, spreader scale, tank weighing system. Can be customized for other sizes, stainless steel or laser welded waterproof products.
|
Specifications |
Technique |
|
Capacity |
10, 20, 30, 50, 100, 200, 300 |
|
Rated output |
1.5±10%mV/V |
|
Combined Error |
0.1%F.S |
|
Zero balance |
0.05mV/V |
|
Non-linearity |
0.1%F.S. |
|
Hysteresis |
0.1% F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.05%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
780±20/385±20Ω |
|
Output impedance |
700±10/350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~70℃ |
|
Safe overload |
150%F.S. |
|
Material |
Stainless Steel |
|
IP Class |
IP66 |
