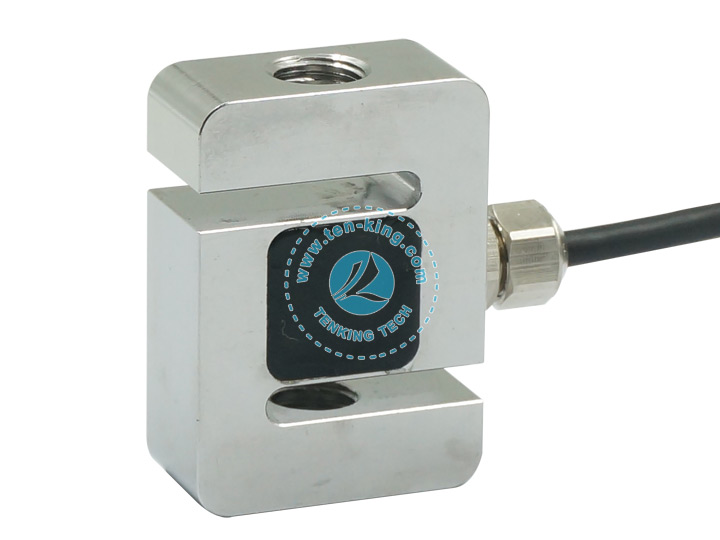

3182 Small S sensor
Range: 50, 100, 200, 500, 1000N
Body material: stainless steel
Comprehensive accuracy: 0.05%
Cable length: 3m

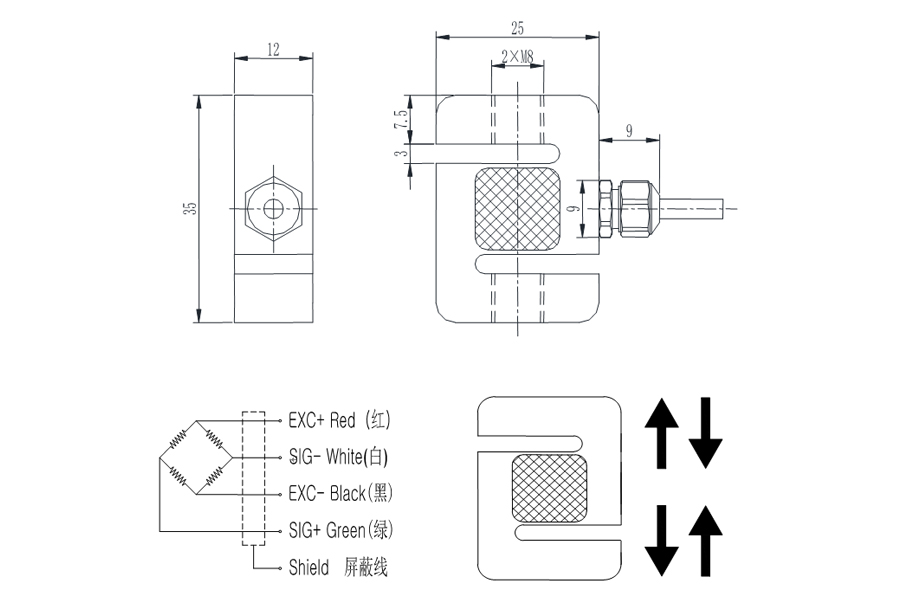

3181 is a small sensor, classic S-type structure, high precision, easy to install, often used in push-pull experimental equipment, hook scale, high-precision button tester, platform weighing system. Mounting thread M8 is optional.
|
Specifications |
Technique |
|
Capacity |
50, 100, 200, 500, 1000N |
|
Rated output |
2.0±10%mV/V |
|
Combined Error |
0.05%F.S |
|
Zero balance |
±0.05mV/V |
|
Non-linearity |
0.05%F.S. |
|
Hysteresis |
0.05%F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.05%F.S. |
|
Temp.effect on output |
0.025%F.S./10℃ |
|
Temp.effect on zero |
0.025%F.S./10℃ |
|
Input impedance |
385±20Ω |
|
Output impedance |
350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ3×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP66 |
