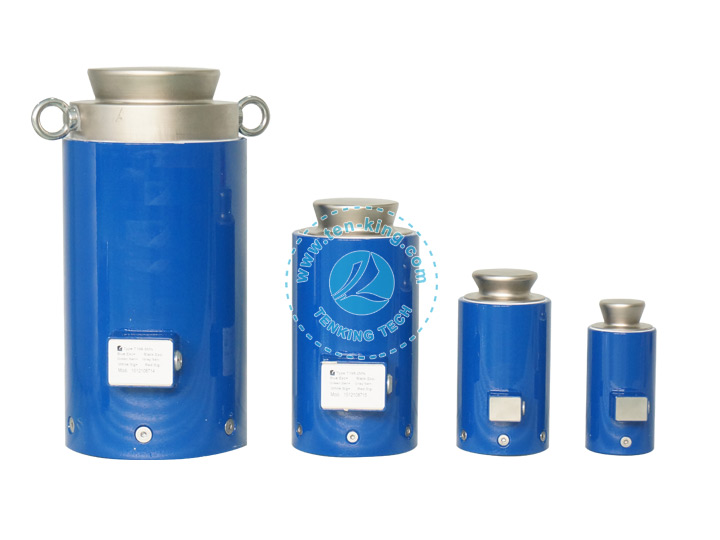

1971 Column sensor
Range: 50~50000kN
Body material: alloy steel
Comprehensive accuracy: 0.03%~0.5%
Cable length: 5m

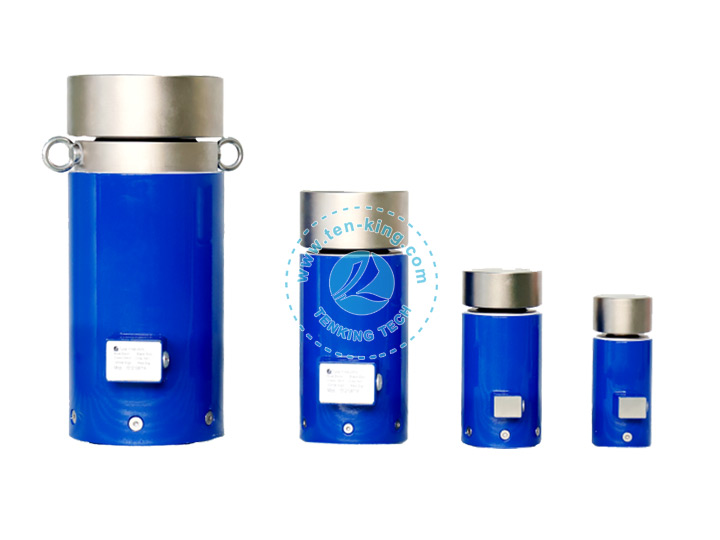

The 1971 is a large-range sensor that is often used for force or weight measurement. High precision, small size, irreplaceable ultra-large range, can provide 50,000kN ultra-large range.
|

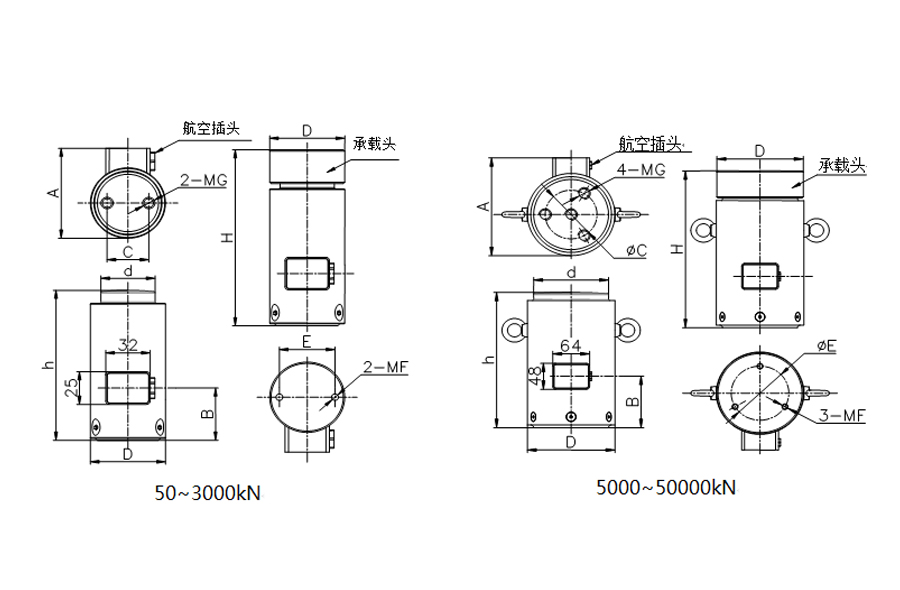

Capacity (kN) |
A |
B |
C |
D |
d |
E |
H |
h |
F |
G |
|
50, 100, 200, 500 |
69 |
40 |
30 |
54 |
39 |
40 |
135 |
115 |
M6深10 |
M8深12 |
|
1000 |
93 |
60 |
40 |
78 |
60 |
50 |
175 |
150 |
M6深10 |
M12深20 |
|
2000 |
121 |
60 |
60 |
103 |
85 |
75 |
240 |
210 |
M10深16 |
M16深25 |
|
3000 |
145 |
70 |
75 |
125 |
105 |
90 |
290 |
250 |
M10深16 |
M16深25 |
|
5000 |
180 |
95 |
90 |
150 |
130 |
100 |
370 |
330 |
M10深16 |
M20深30 |
|
10000 |
245 |
125 |
120 |
215 |
190 |
120 |
450 |
400 |
M10深16 |
M20深30 |
|
20000 |
318 |
150 |
200 |
295 |
260 |
200 |
650 |
570 |
M12深20 |
M24深40 |
|
50000 |
487 |
185 |
300 |
455 |
420 |
300 |
800 |
600 |
M12深20 |
M24深40 |
|
Specifications |
Technique |
|
Capacity |
50, 100, 200, 500, 1000, 2000, 3000, 5000, 10000, 20000, 50000 kN |
|
Rated output |
~2.0mV/V |
|
Zero balance |
±1%F.S. |
|
Non-linearity |
0.02%,0.05%,0.1%,0.3%F.S. |
|
Hysteresis |
0.02%,0.05%,0.1%,0.3%F.S. |
|
Repeatability |
0.02%,0.05%,0.1%,0.3%F.S. |
|
Creep(300min) |
0.02%,0.05%,0.1%,0.3%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
760±20Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5V |
|
Operation temp range |
-30~70℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ5.4×6000mm |
|
Material |
合金钢&不锈钢 |
|
IPclass |
IP67 |
