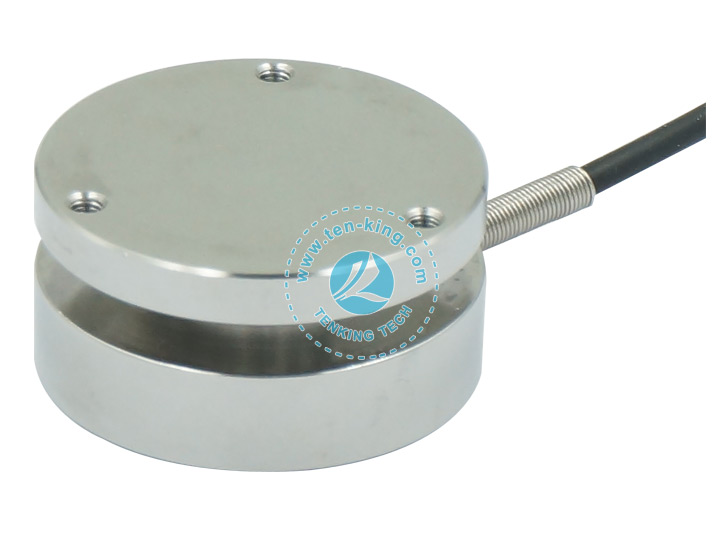

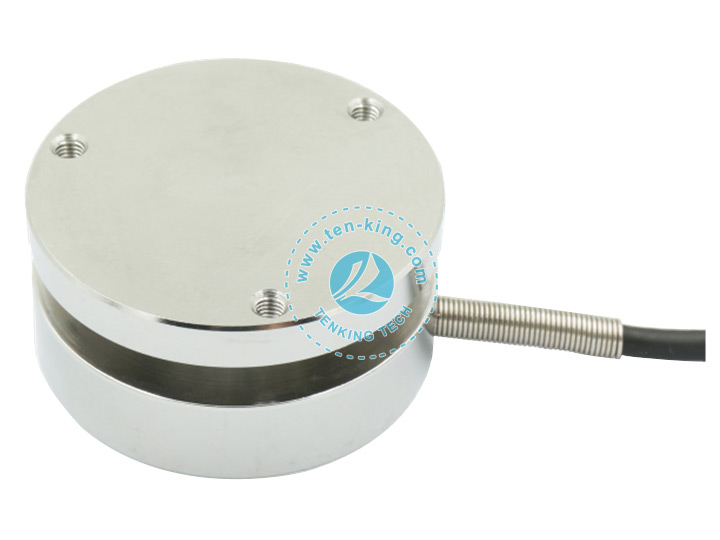

2179 Surface loading sensor
Range: 10/20/300/500N
Body material: stainless steel
Comprehensive accuracy: 0.3%
Cable length: 4m

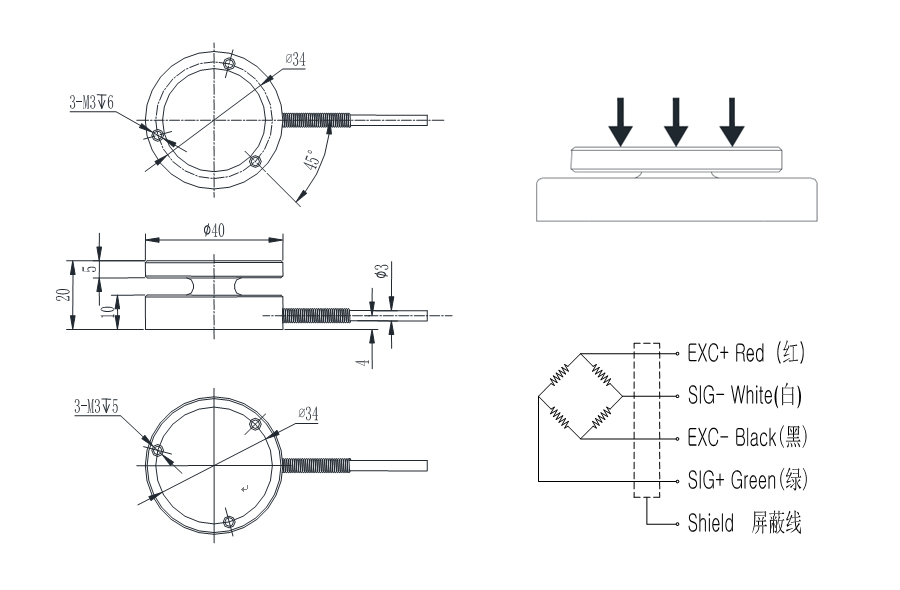

The force sensor 2179 is a loading surface that is flat, and both the fixing surface and the loading surface have threaded holes. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. This product offers a wide measuring range, small size and easy installation. It is an ideal measurement option within 10~500kN.
|
Specifications |
Technique |
|
Capacity |
100, 200, 300, 500N |
|
Rated output |
1.5±20%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.2%F.S. |
|
Hysteresis |
0.2%F.S. |
|
Repeatability |
0.1%F.S. |
|
Creep(30min) |
0.1%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ3×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP67 |
