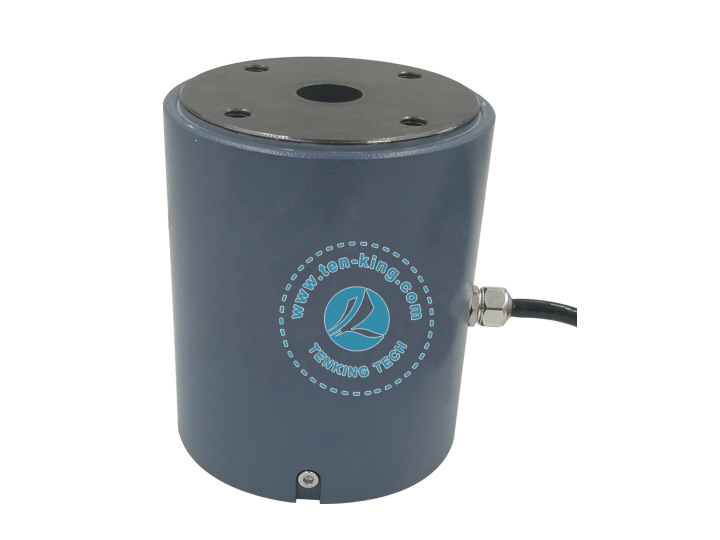

1539 Column sensor
Range: 5/10/20/30/50/100/200/300/500kN
Body material: alloy steel
Comprehensive accuracy: 0.1%
Cable length: 5m
The 1539 is a very wide range of sensors used for force or weight measurement. This product offers a wide range of ranges, high impact resistance and overload capability. It is widely used in mechanical stamping equipment and fatigue testing equipment.
|

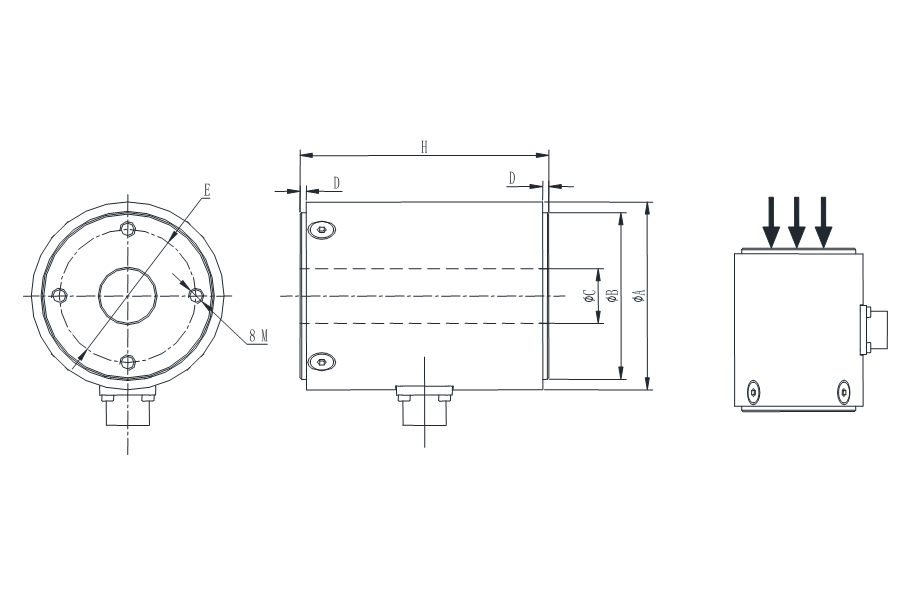

Cap（kN） |
A |
B |
C |
D |
E |
H |
M |
|
5 |
40 |
35 |
10 |
1 |
24 |
50 |
M4deep8 |
|
10, 20, 30, 50, 100 |
62 |
55 |
18 |
2 |
44 |
70 |
M5deep8 |
|
200 |
88 |
80 |
20 |
2 |
60 |
100 |
M8deep12 |
|
300 |
100 |
90 |
20 |
2 |
70 |
120 |
M8deep12 |
|
500 |
134 |
120 |
30 |
2 |
90 |
150 |
M10deep16 |
|
Specifications |
技术指标/Technique |
|
Capacity |
5, 10, 20, 30, 50, 100, 200, 300, 500kN |
|
Rated output |
1.5±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.2%F.S. |
|
Hysteresis |
0.2%F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.05%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
780±20Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ5×5m |
|
Material |
Alloy Steel |
|
IP Class |
IP66 |
