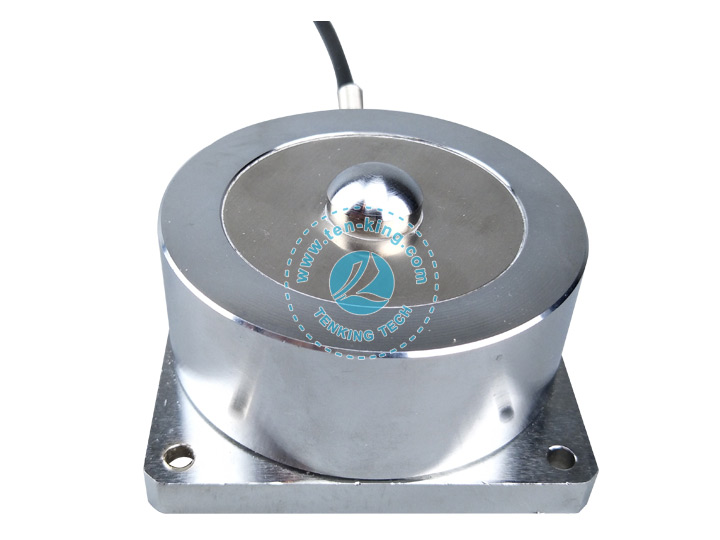

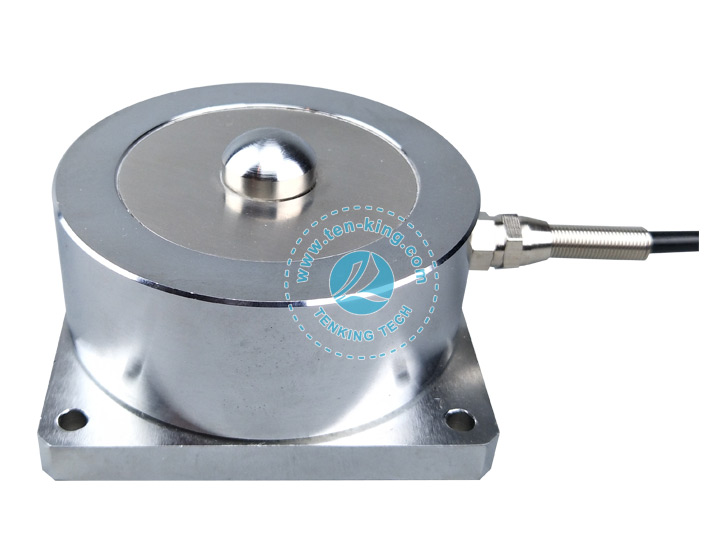

1501 Spoke sensor
Range: 0.2/0.5/1/2/3/5/10/20/30t
Body material: alloy steel
Comprehensive accuracy: 0.05%
Cable length: 4m
The 1501 adopts a spoke-type elastomer structure, which adopts the shear stress principle and has the characteristics of low profile, anti-offset load, high precision and good strength. Suitable for a wide range of load force tests. Widely used in various electronic scales, cement batching bins, dry powder mixers and industrial automation measurement and control systems.
|

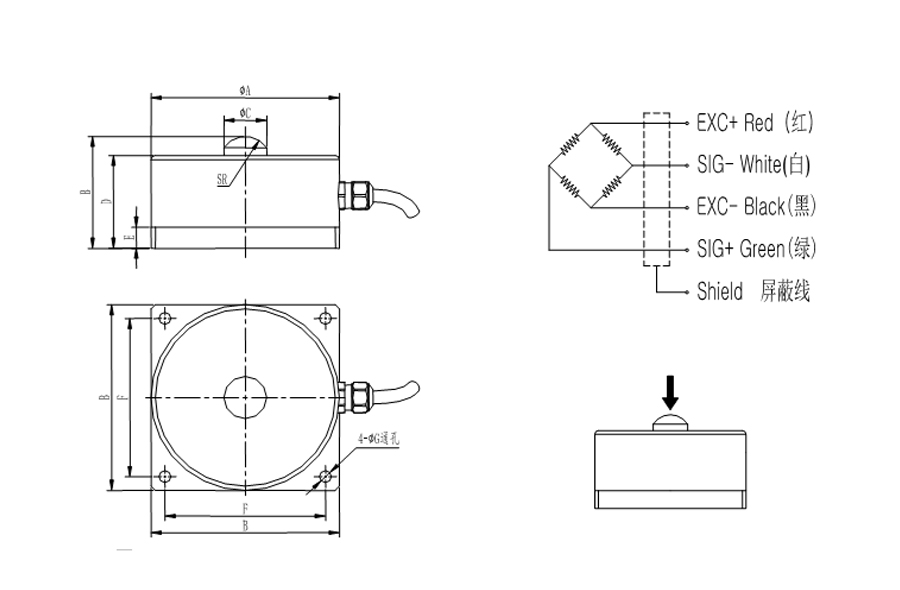

Cap（t） |
A |
B |
C |
D |
E |
F |
G |
SR |
|
0.2, 0.5 |
72 |
41 |
16 |
33 |
8 |
62 |
4.6 |
8 |
|
1,2,3,5 |
88 |
53 |
20 |
44 |
10 |
75 |
5.6 |
12 |
|
10,15 |
114 |
70 |
25 |
59 |
13 |
95 |
6.5 |
25 |
|
20,30 |
145 |
91 |
30 |
76 |
16 |
120 |
11 |
30 |
|
Specifications |
Technique |
|
Capacity |
0.2/ 0.5/ 1/ 2/ 3/ 5/ 10/ 20/ 30t |
|
Rated output |
2.0±0.05mV/V |
|
Combined Error |
0.05%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.05%F.S. |
|
Hysteresis |
0.05%F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.02%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
780±20Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ5×4m |
|
Material |
Alloy Steel |
|
IP Class |
IP67 |
