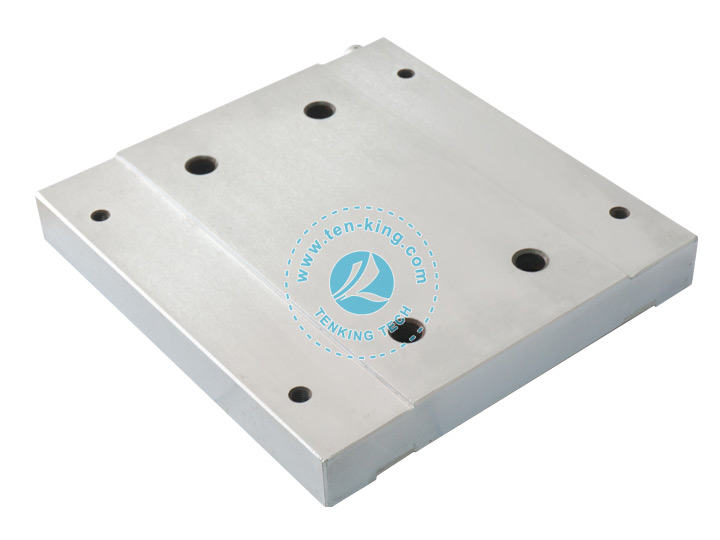

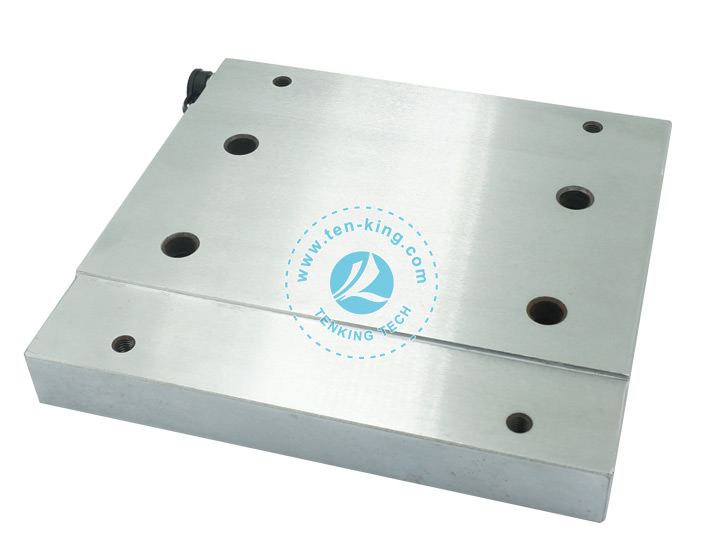

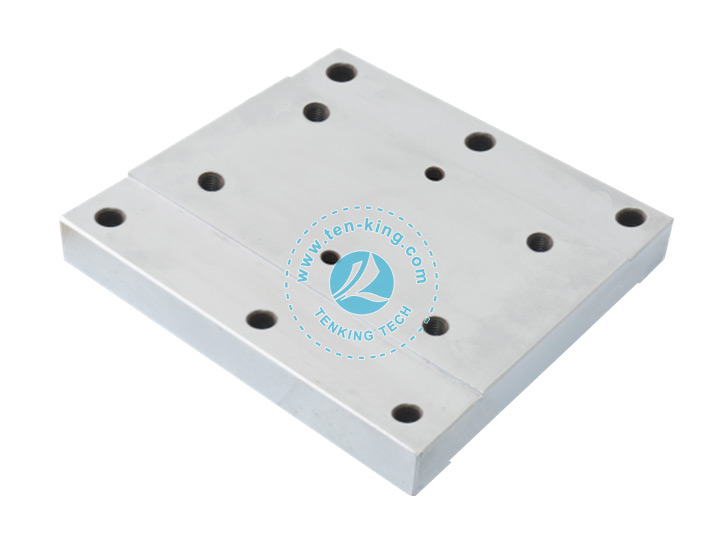

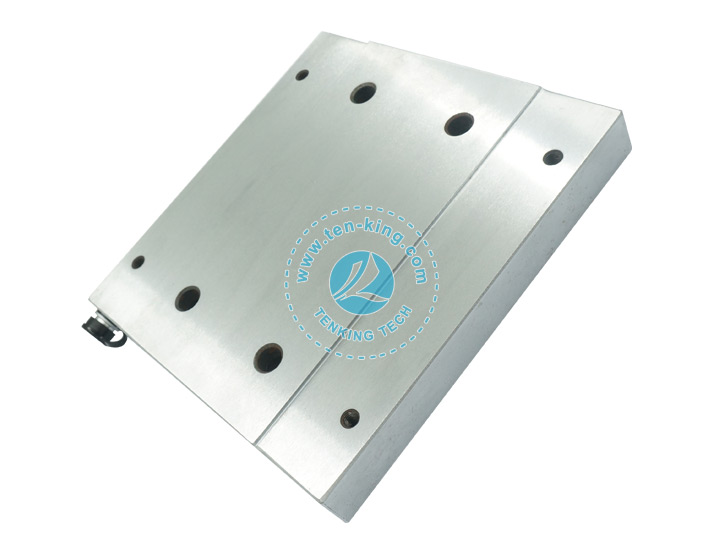

1211 Type sensor
Range: 10/20/30/50/100kN
Body material: alloy steel nickel plating
Comprehensive accuracy: 0.1%
Cable length: 5m
The 1211 is a plate force sensor. The fixed and load surfaces are flat and easy to install. They are often used for press fitting, stamping, and automatic control systems. It is an ideal choice for large plane loading applications. Other sizes can be customized.
|
Specifications |
Technique |
|
Capacity |
10, 20,20,50, 100kN |
|
Rated output |
1.5±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.1%F.S. |
|
Hysteresis |
0.2%F.S. |
|
Repeatability |
0.1%F.S. |
|
Creep(30min) |
0.05%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
700±20Ω |
|
Output impedance |
700±20Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ5×5m |
|
Material |
Alloy steel |
|
IP Class |
IP66 |
