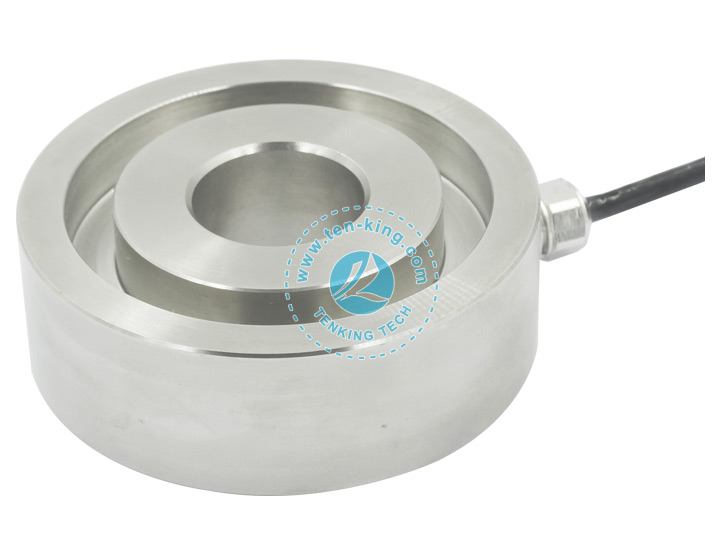

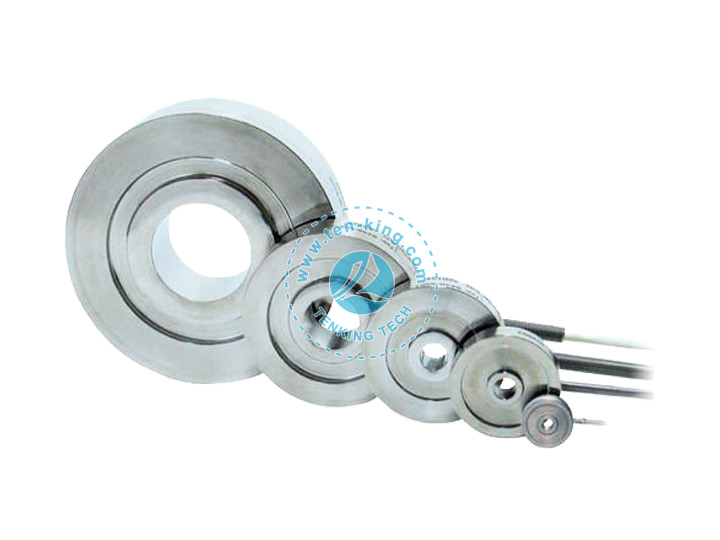

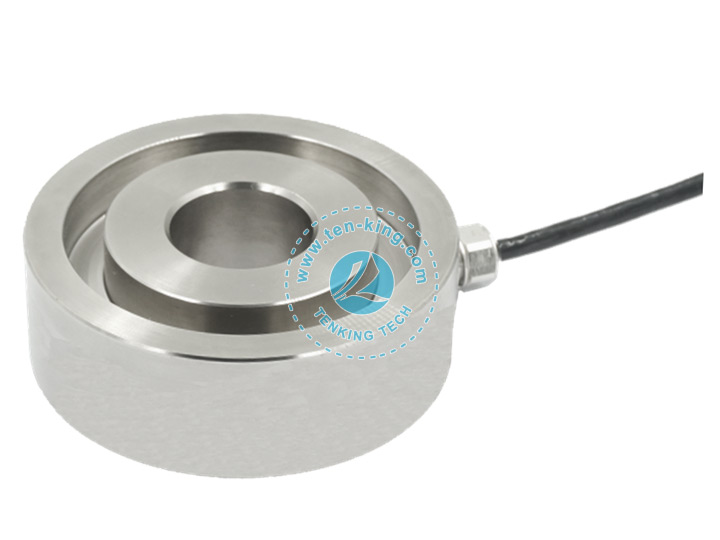

1191 Hollow sensor
Range: 1~200kN
Body material: stainless steel
Comprehensive accuracy: 0.2%
Cable length: 4m
The 1191 is a very wide range of sensors used for force or weight measurement. This product offers a wide measuring range, small size, and intermediate through holes. It is a good choice for measuring environments where through holes are required, such as bolt pressing force and punching equipment.
|

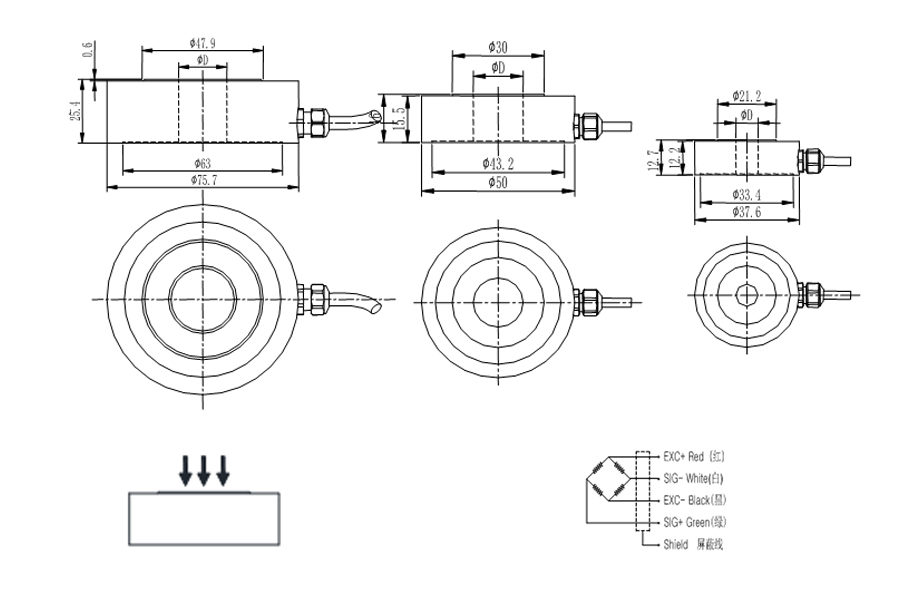

Cap（kN） |
10, 20, 30, 50, 100, 200 |
|
ФD(mm) |
7, 9, 11, 13, 15, 17, 19, 21, 25, 32 |
|
Cap（kN） |
5, 10, 20, 30, 50 |
|
ФD(mm) |
7, 9, 11, 13, 15, 16.5 |
|
Cap（kN） |
1, 2, 5, 10, 20 |
|
ФD(mm) |
5, 6, 7, 9, 11, 13, 15 |
|
Specifications |
Technique |
|
Capacity |
1~200kN |
|
Rated output |
1.5±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.03 mV/V |
|
Non-linearity |
0.1%F.S. |
|
Hysteresis |
0.1%F.S. |
|
Repeatability |
0.05%F.S. |
|
Creep(30min) |
0.05%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
780±20Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ3/φ4×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP67 |
