1171 Button type sensor
Range: 50/100/200/300/500/1000N
Body material: stainless steel
Comprehensive accuracy: 0.5%
Cable length: 3m

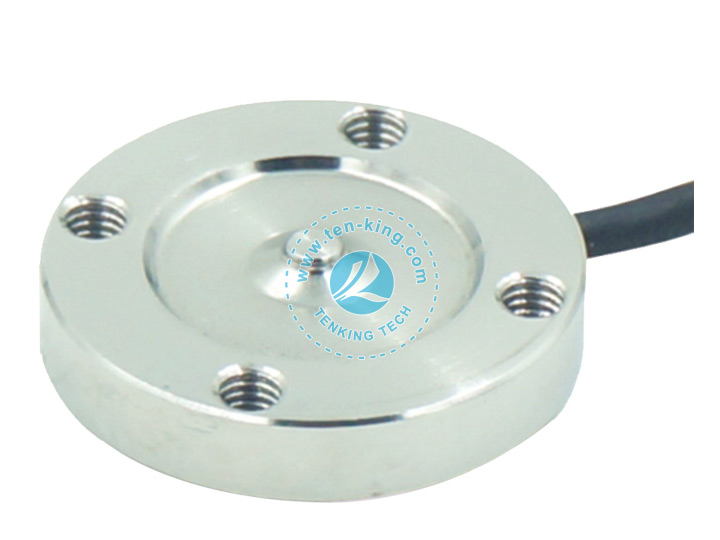

The 1171 is an ultra-small button-type sensor with four threaded holes in the outer ring and a load in the middle. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. The shape is extremely small and the thickness is only 5mm, which is especially suitable for small spaces.
|
Specifications |
技术指标/Technique |
|
Capacity |
50, 100, 200, 500, 1000N |
|
Rated output |
1.5±20%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.50%F.S. |
|
Hysteresis |
0.50%F.S. |
|
Repeatability |
0.20%F.S. |
|
Creep(30min) |
0.20%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
800~1100Ω |
|
Output impedance |
800~1100Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ2×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP65 |
