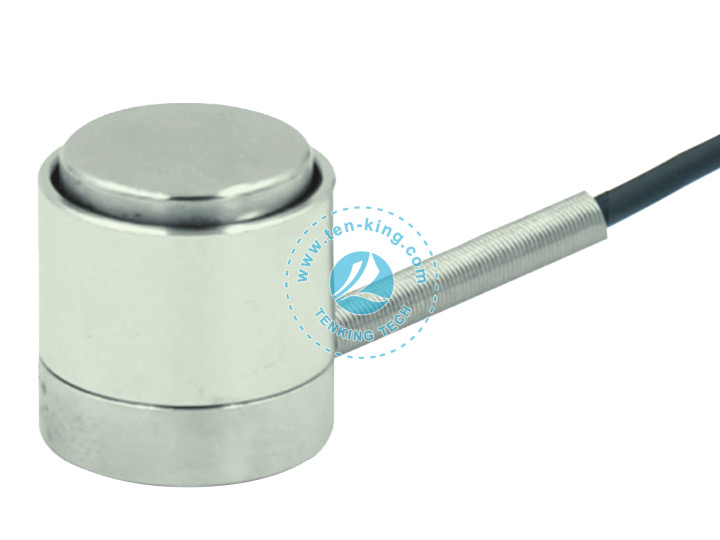

1141 Column sensor
Range: 10/20/50/75/100/150kN
Body material: stainless steel
Comprehensive accuracy: 0.3%
Cable length: 3m
The column sensor 1141 is a very wide range of sensors that are used for force or weight measurement. 1141 is commonly used in laboratory and automation equipment for feedback control and quantized value output systems. This product is small in size and large in size, and is an ideal choice for large-scale small-space measurement.
|

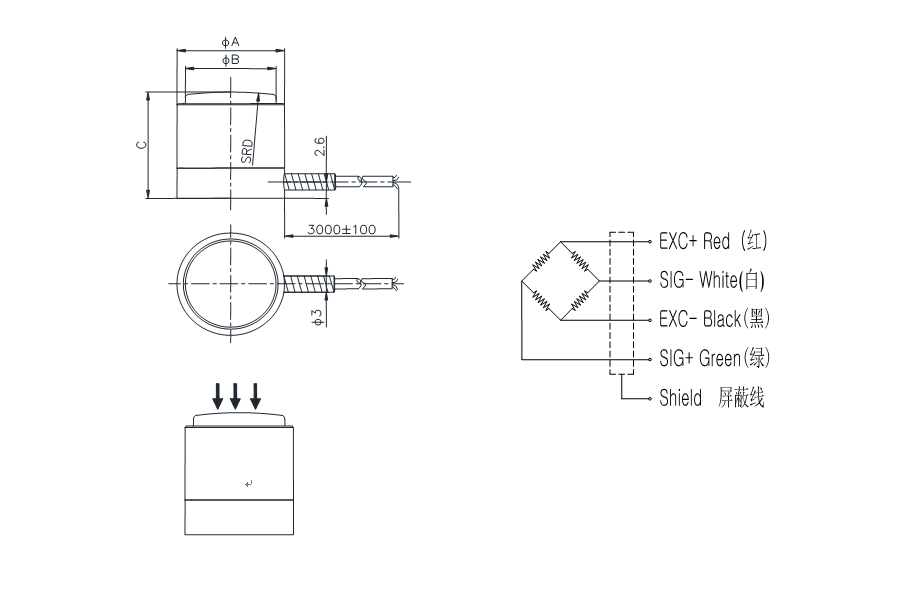

Capacity（kN） |
A |
B |
C |
D |
|
10, 20 |
15.9 |
13.4 |
16.5 |
100 |
|
50, 75 |
22.4 |
20.4 |
22.4 |
100 |
|
100, 150 |
31.8 |
28.9 |
28.7 |
125 |
|
Specifications |
技术指标/Technique |
|
Capacity |
10, 20, 50, 75, 100, 150kN |
|
Rated output |
2.0±10%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.50%F.S. |
|
Hysteresis |
0.20%F.S. |
|
Repeatability |
0.20%F.S. |
|
Creep(30min) |
0.20%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
700±10Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
200%F.S. |
|
Cable size |
Φ2 /Φ3×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP66 |
