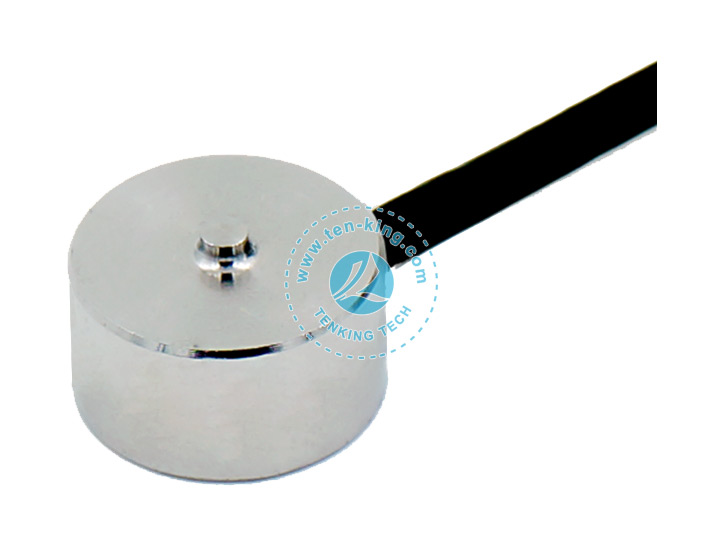

1031 Membrane type sensor
Range: 50/100/200/500/1000N
Body material: stainless steel
Comprehensive accuracy: 0.5%
Cable length: 4m
The 1031 is an ultra-small button sensor that is widely used for force or weight measurement. 1031 is commonly used in feedback control and quantized value output systems for laboratories and automation equipment. Small in size, especially suitable for small spaces.
|

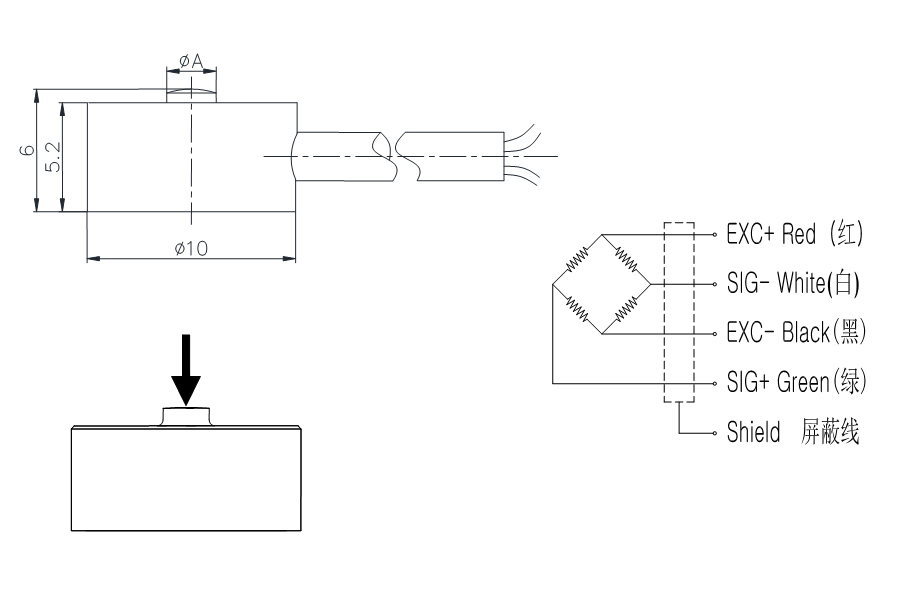

Capacity（N） |
A |
|
50, 100 |
1.5 |
|
200 |
2 |
|
500, 1000 |
2.5 |
|
Specifications |
技术指标/Technique |
|
Capacity |
50, 100, 200, 500, 1000N |
|
Rated output |
1.0±20%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±2%F.S. |
|
Non-linearity |
0.5%F.S. |
|
Hysteresis |
0.5%F.S. |
|
Repeatability |
0.5%F.S. |
|
Creep(30min) |
0.5%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ2×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP67 |
