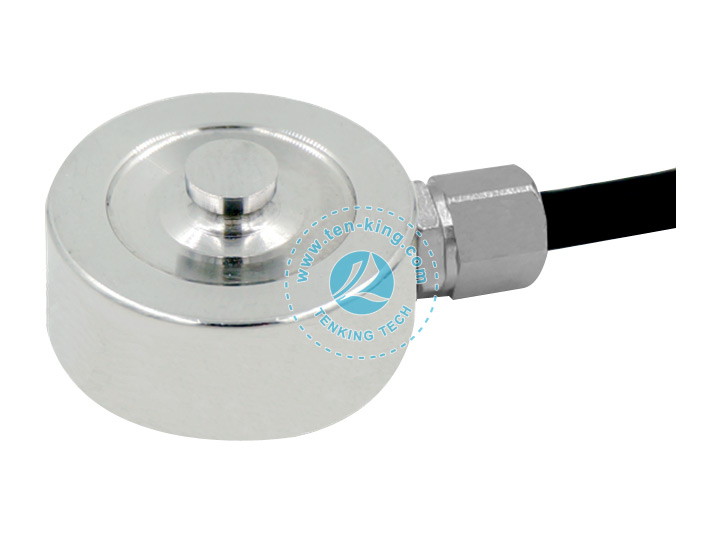

1021 Membrane type sensor
Range: 0.1/0.2/0.5/1/2/5/10kN
Body material: stainless steel
Comprehensive accuracy: 0.5%
Cable length: 4m
The bellows sensor 1021 is a very wide range of sensors that are used for force or weight measurement. 1021 is commonly used for feedback control and quantized value output systems in laboratories and automation equipment. This product offers a wide measuring range, small size and easy installation. It is an ideal choice for measurement within 0.1~10kN.
|
Specifications |
Technique |
|
Capacity |
0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20kN |
|
Rated output |
1.5±20%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.05mV/V |
|
Non-linearity |
0.50%F.S. |
|
Hysteresis |
0.50%F.S. |
|
Repeatability |
0.20%F.S. |
|
Creep(30min) |
0.10%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ3×4000mm |
|
IP Class |
IP67 |
|
Material |
Stainless Steel |
