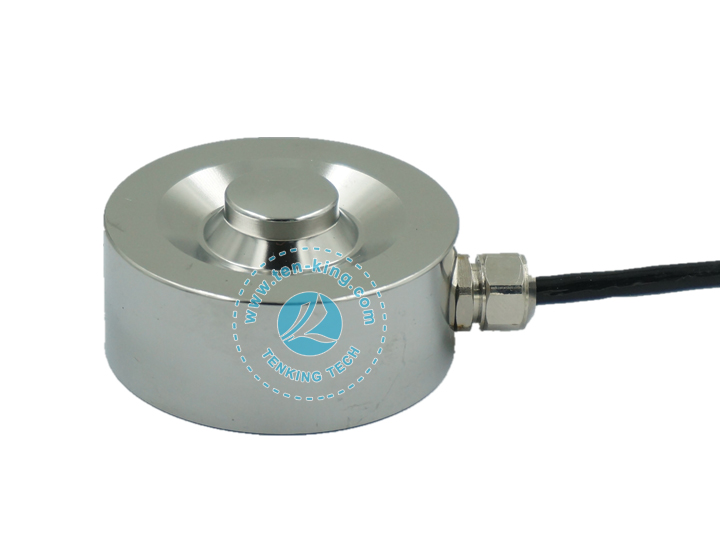

1011 Membrane type sensor
Range: 1/2/5/10/20/50/100kN
Body material: stainless steel
Comprehensive accuracy: 0.1% F.S
Cable length: 4m
The 1011 capsule sensor is a very wide range of sensors used for force or weight measurement. 1011 is commonly used for feedback control and quantized value output systems in laboratories and automation equipment. This product offers a wide measuring range, small size and easy installation. It is an ideal measurement option within 1~100kN.
|

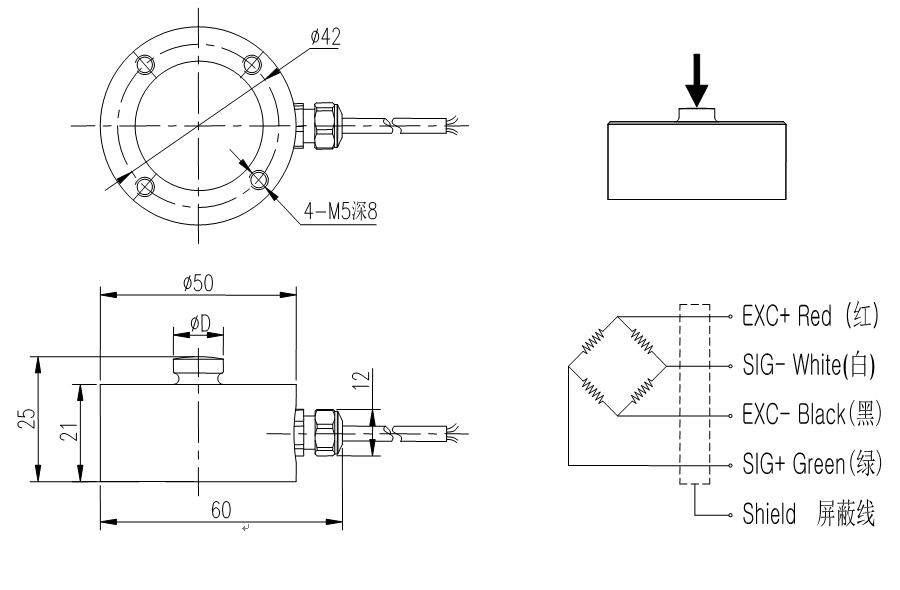

Capacity（kN） |
D |
|
1, 2, 5, 10, 20 |
13 |
|
50 |
16 |
|
100 |
21 |
|
Specifications |
Technique |
|
Capacity |
1, 2, 5, 10, 20, 50, 75, 100 kN |
|
Rated output |
1.5±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.03 mV/V |
|
Non-linearity |
0.2%F.S. |
|
Hysteresis |
0.1%F.S. |
|
Repeatability |
0.1%F.S. |
|
Creep(30min) |
0.05%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
780±20Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ4×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP67(可订制IP68) |
