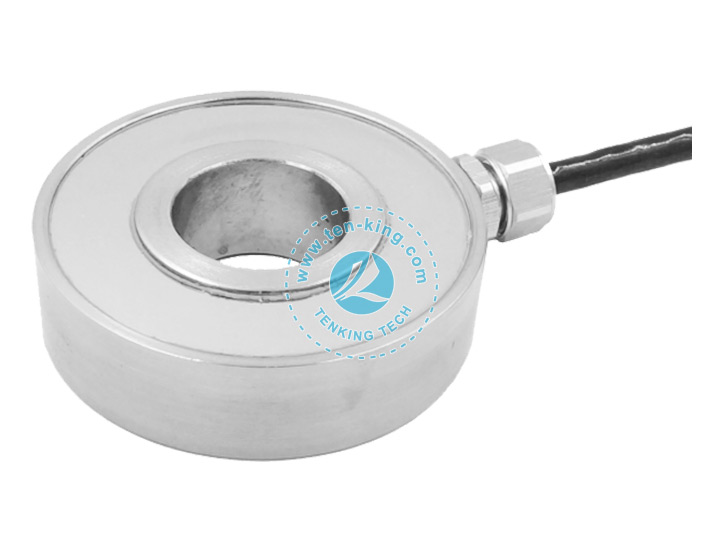

0299 Hollow sensor
Range: 0.1/0.2/0.5/1/2/3/5kN
Body material: stainless steel
Comprehensive accuracy: 0.2%
Cable length: 3m
The 0299 is a very wide range of sensors used for force or weight measurement. This product offers a wide range of measurements, small size, and intermediate through-holes. It is a good choice for measuring environments where through-holes are required.
|
Specifications |
Technique |
|
Capacity |
0.1, 0.2, 0.5, 1, 2, 3, 5kN |
|
Rated output |
1.5±20%mV/V |
|
Combined Error |
0.2%F.S |
|
Zero balance |
±0.05mV/V |
|
Non-linearity |
0.20%F.S. |
|
Hysteresis |
0.20%F.S. |
|
Repeatability |
0.10%F.S. |
|
Creep(30min) |
0.10%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
780±20Ω |
|
Output impedance |
700±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ4×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP66 |
