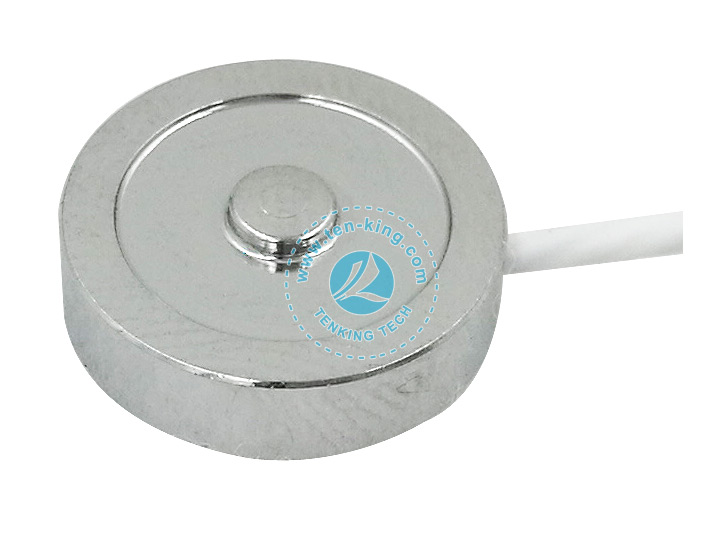

1041 Button type sensor
Range: 50/100/200/300/500/1000N
Body material: stainless steel
Comprehensive accuracy: 0.5%
Cable length: 4m
The 1041 is an ultra-small button sensor that is widely used for force or weight measurement. 1041 is commonly used in laboratory and automation equipment for feedback control and quantized value output systems. The shape is extremely small and the thickness is only 4mm, which is especially suitable for small spaces.
|

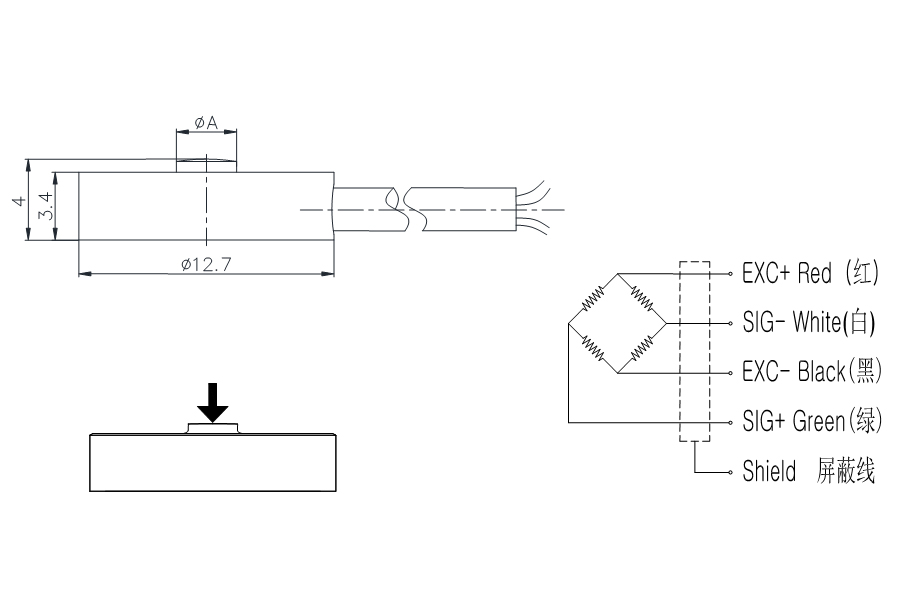

Capacity（N） |
A |
|
50, 100, 200 |
2 |
|
300, 500, 1000 |
3 |
|
Specifications |
Technique |
|
Capacity |
50, 100, 200, 500, 1000N |
|
Rated output |
1.5±20%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.50%F.S. |
|
Hysteresis |
0.50%F.S. |
|
Repeatability |
0.20%F.S. |
|
Creep(30min) |
0.50%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ1.2×4000mm |
|
Material |
Stainless Steel |
|
IP Class |
IP67 |
