8151 Column structure
Range: 10, 25, 40, 60, 100, 200t
Body material: stainless steel laser welding
Comprehensive accuracy: 0.03%
Cable length: 10m

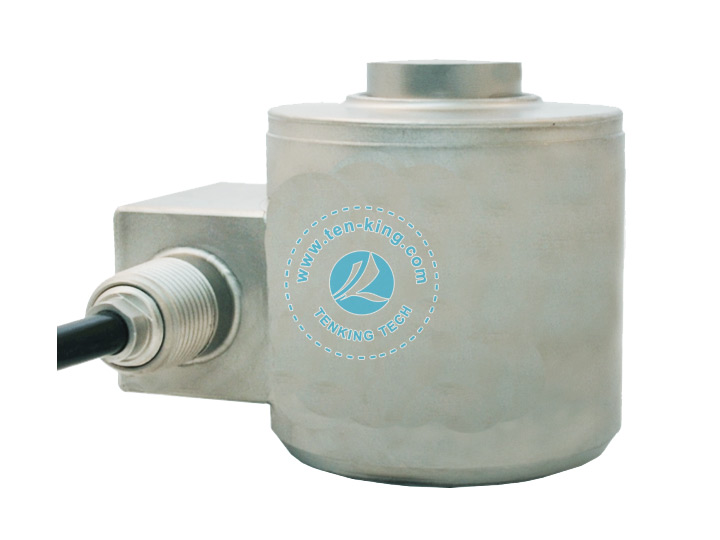

The 8151 is a high-precision column weighing load cell with low height and easy installation. It is commonly used in electronic truck scales, mechanical testing machines, electronic weighing platforms, and tank reactor weighing systems. It is one of the commonly used sensors of the mechanical testing machine.
|

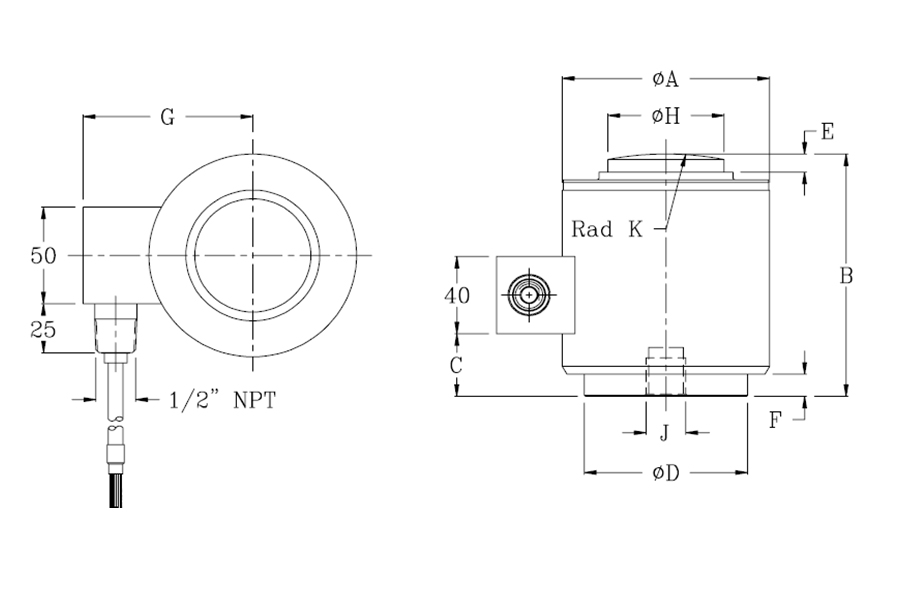

Cap（t） |
ΦA |
B |
C |
ΦD |
E |
F |
G |
ΦH |
K |
J |
|
10,25 |
73 |
82.5 |
12 |
58 |
6.5 |
1.8 |
64 |
31.8 |
152 |
M12 |
|
40,60 |
105 |
127 |
34 |
82.5 |
8 |
11 |
87 |
58.7 |
152 |
M20 |
|
100 |
152.4 |
184 |
72 |
123.8 |
23.6 |
21.8 |
108 |
79.2 |
432 |
M20 |
|
200 |
167.6 |
228.6 |
92 |
136.3 |
10.9 |
25.4 |
123 |
93.7 |
432 |
M20 |
|
参数 |
Specifications |
技术指标/Technique |
|
额定容量 |
Capacity |
10, 25, 40, 60, 100, 200t |
|
精度等级 |
Accuracy class |
C3 |
|
输出灵敏度 |
Rated output |
2.0±0.1%mV/V |
|
零点输出 |
Zero balance |
±2%F.S. |
|
非线性 |
Non-linearity |
0.025%F.S. |
|
滞后 |
Hysteresis |
0.02%F.S. |
|
重复性 |
Repeatability |
0.02%F.S. |
|
蠕变（30min） |
Creep(30min) |
0.018%F.S. |
|
温度灵敏度漂移 |
Temp.effect on output |
0.014%F.S./10℃ |
|
零点温度漂移 |
Temp.effect on zero |
0.0125%F.S./10℃ |
|
输入电阻 |
Input impedance |
450±10Ω |
|
输出电阻 |
Output impedance |
480±10Ω |
|
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
|
激励电压 |
Recommended excitation |
5~15V |
|
工作温度范围 |
Operation temp range |
-30~70℃ |
|
安全超载 |
Safe overload |
150%F.S. |
|
电缆线尺寸 |
Cable size |
Φ7.5×10m |
|
防护等级 |
IP Class |
IP68 |
