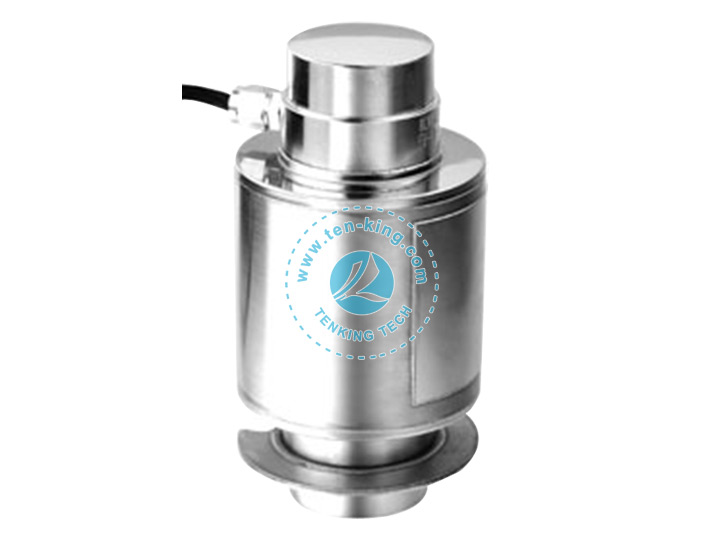

8161 Column structure
Range: 10, 20, 30, 40, 50, 60t
Body material: stainless steel laser welding
Comprehensive accuracy: 0.03%
Cable length: 10m
The 8161 is a high-precision column weighing load cell with low height and easy installation. It is commonly used in electronic truck scales, mechanical testing machines, electronic weighing platforms, and tank reactor weighing systems. It is one of the commonly used sensors for electronic truck scales.
|
Specifications |
Technique |
|
Capacity |
10, 20, 30, 40, 50, 60t |
|
Accuracy class |
C3 |
|
Rated output |
2.0±0.1%mV/V |
|
Zero balance |
±2%F.S. |
|
Non-linearity |
0.025%F.S. |
|
Hysteresis |
0.02%F.S. |
|
Repeatability |
0.02%F.S. |
|
Creep(30min) |
0.018%F.S. |
|
Temp.effect on output |
0.014%F.S./10℃ |
|
Temp.effect on zero |
0.0125%F.S./10℃ |
|
Input impedance |
450±10Ω |
|
Output impedance |
480±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-30~70℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ6×8m |
|
IP Class |
IP68 |
