8141 Bridge structure
Range: 10t/20t/30t/40t
Body material: alloy steel nickel plating
Comprehensive accuracy: 0.025%
Cable length: 3m

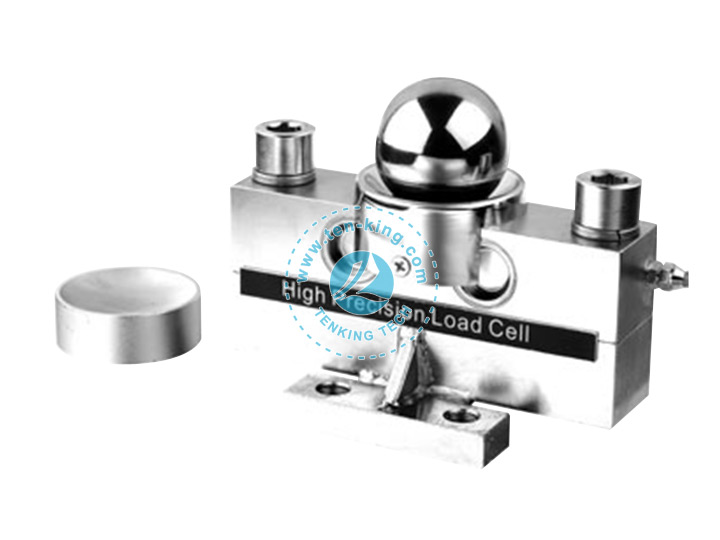

The 8141 is a high-precision cantilever type load cell with high precision and easy installation. It is commonly used in electronic platform scales, mechanical testing machines, electronic weighing platforms, and tank reactor weighing systems. It is a sensor structure for platform scale applications.
|

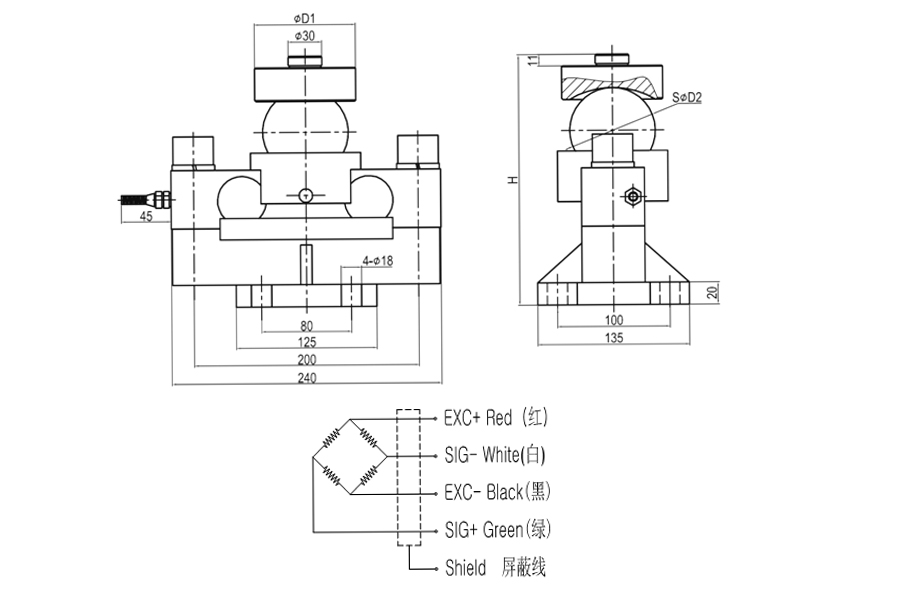

Cap（t） |
D1 |
D2 |
H |
|
10, 20, 30 |
85 |
70 |
225 |
|
40 |
88 |
80 |
231 |
|
Specifications |
技术指标/Technique |
|
Capacity |
10, 20, 30, 40t |
|
Accuracy class |
C3 |
|
Rated output |
2.0±0.1%mV/V |
|
Zero balance |
±2%F.S. |
|
Non-linearity |
0.025%F.S. |
|
Hysteresis |
0.02%F.S. |
|
Repeatability |
0.02%F.S. |
|
Creep(30min) |
0.018%F.S. |
|
Temp.effect on output |
0.014%F.S./10℃ |
|
Temp.effect on zero |
0.0125%F.S./10℃ |
|
Input impedance |
760±10Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-30~70℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ5×8000mm |
|
IP Class |
IP68 |
