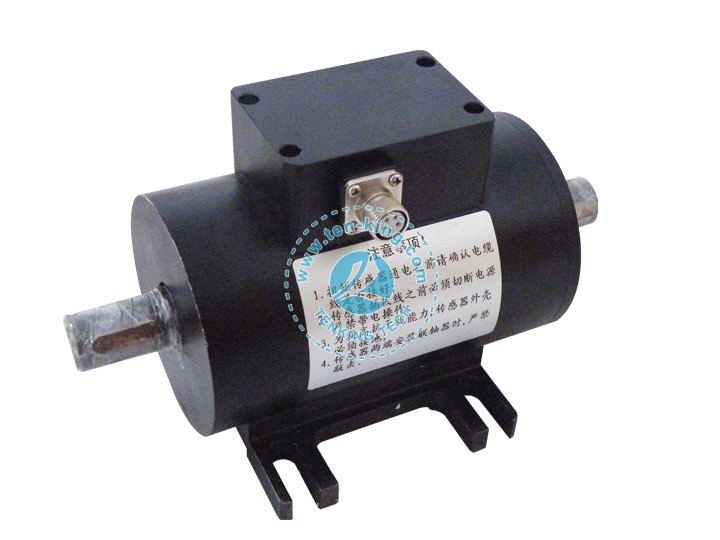

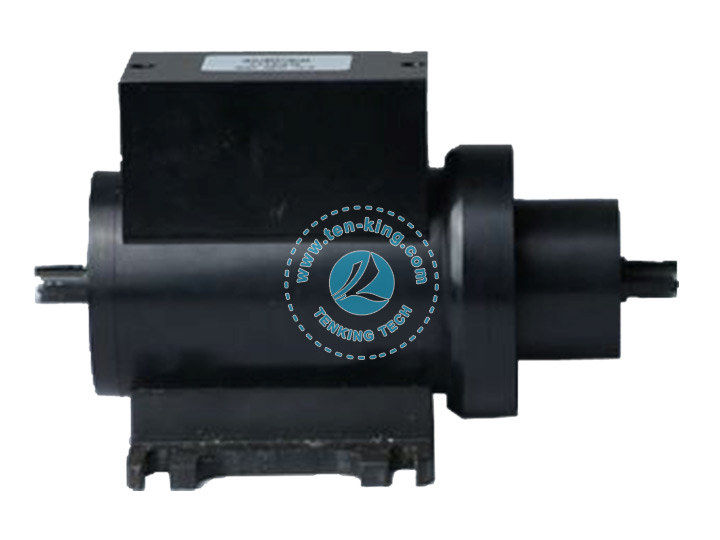

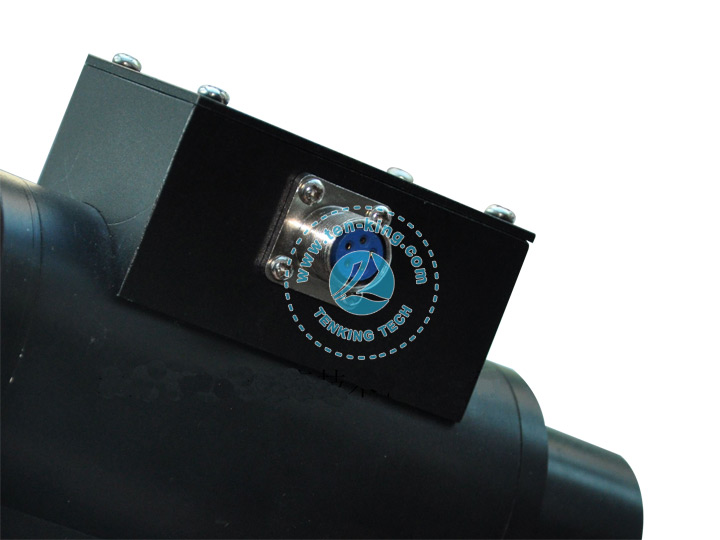

9085 Dynamic torque sensor
Range: 5/10/ 20/30/50/100/200/500/1000 N.m
Body material: alloy steel
Comprehensive accuracy: 0.2%
Cable length: 4m
The Dynamic Torque Measurement Sensor 9085 is a very wide range of sensors that are used for continuous rotational torque measurement. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. This product offers a wide range of measuring ranges and is easy to install. It is one of the commonly used continuous rotating torque measuring sensors within 5000 rpm. ^ can go to 300k N.m.
|

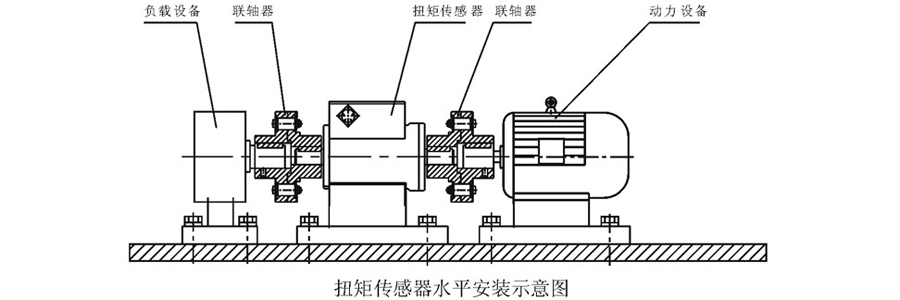

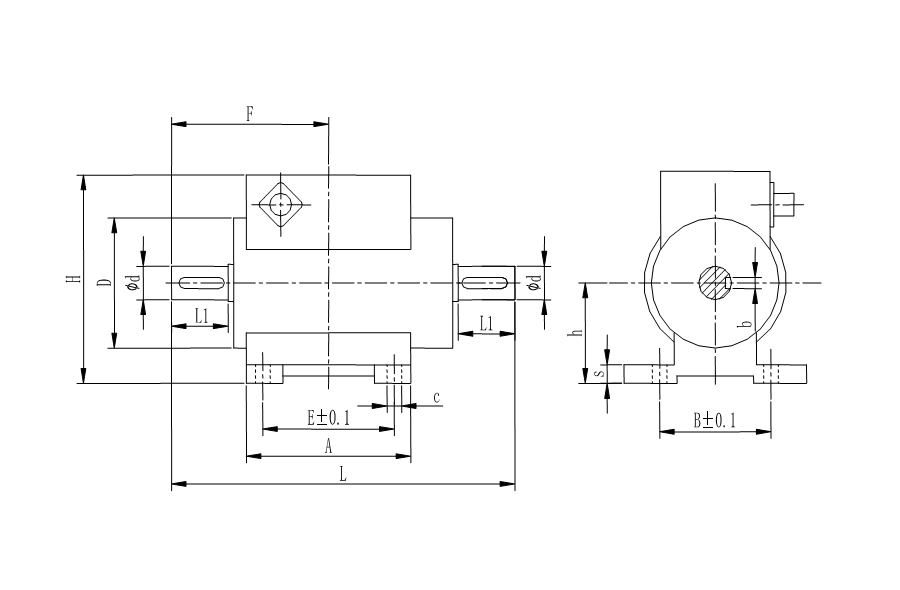

Cap（N.m） |
L |
H |
Φd |
h |
L1 |
b |
键槽 |
|
1~100 |
188 |
115 |
18 |
54 |
28 |
6 |
单键 |
|
200 |
207 |
124 |
28 |
60 |
35 |
8 |
单键 |
|
500 |
240 |
142 |
38 |
65 |
45 |
10 |
双键 |
|
1000 |
275 |
152 |
48 |
70 |
60 |
14 |
双键 |
|
Specifications |
Technique |
|
Capacity |
5N.m~300KN.m |
|
Rated output |
2.0±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Non-linearity |
0.2%F.S. |
|
Hysteresis |
0.1%F.S. |
|
Repeatability |
0.1%F.S. |
|
Creep(30min) |
0.1%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
410±20Ω |
|
Output impedance |
350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ4×4000mm |
|
Material |
Alloy steel |
|
IP Class |
IP66 |
