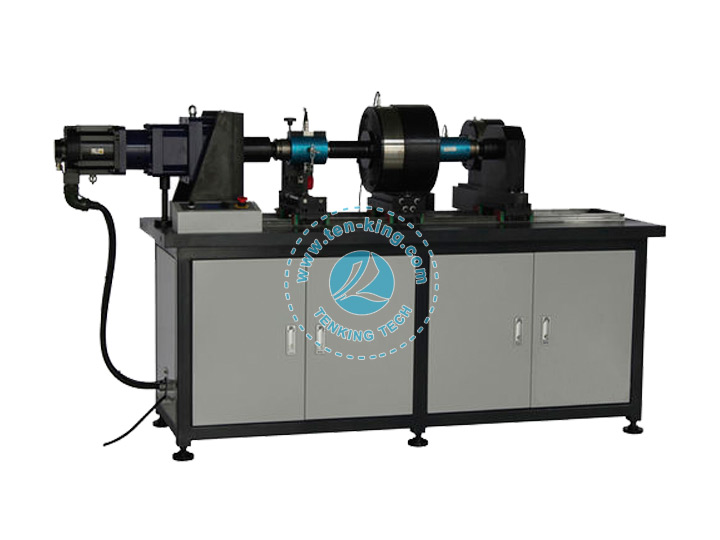

9081 Dynamic torque sensor
Range: 10/ 20/30/50/100/200/500/1000N.m
Body material: aluminum alloy
Comprehensive accuracy: 0.2%
Cable length: 4m

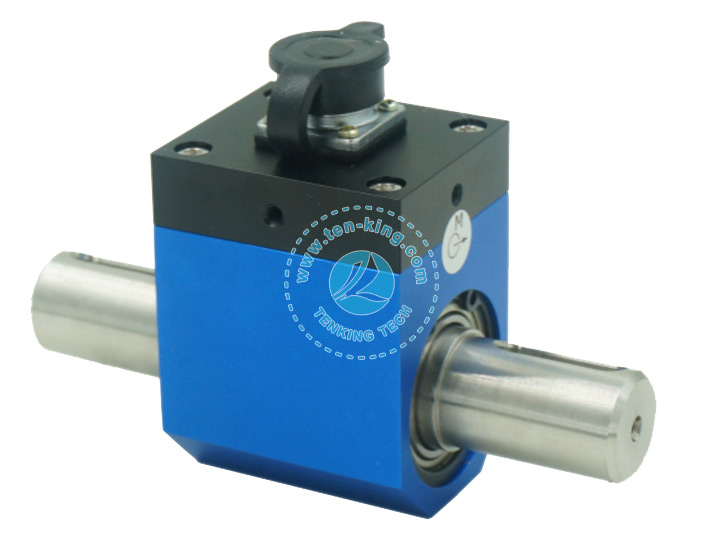

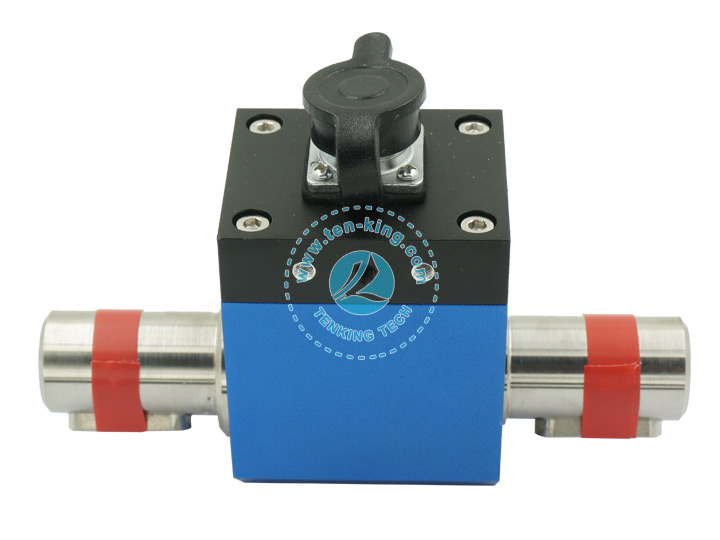

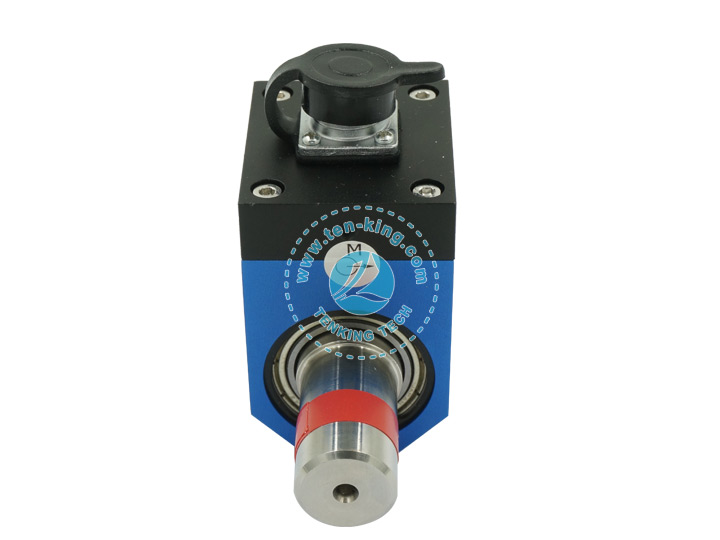

The Dynamic Torque Measurement Sensor 9081 is a very wide range of sensors that are used for continuous rotational torque measurement. Commonly used in laboratory and automation equipment feedback control and quantized value output systems. This product offers a wide range of measuring ranges and is easy to install. It is one of the commonly used continuous rotating torque measuring sensors within 2000 rpm.
|

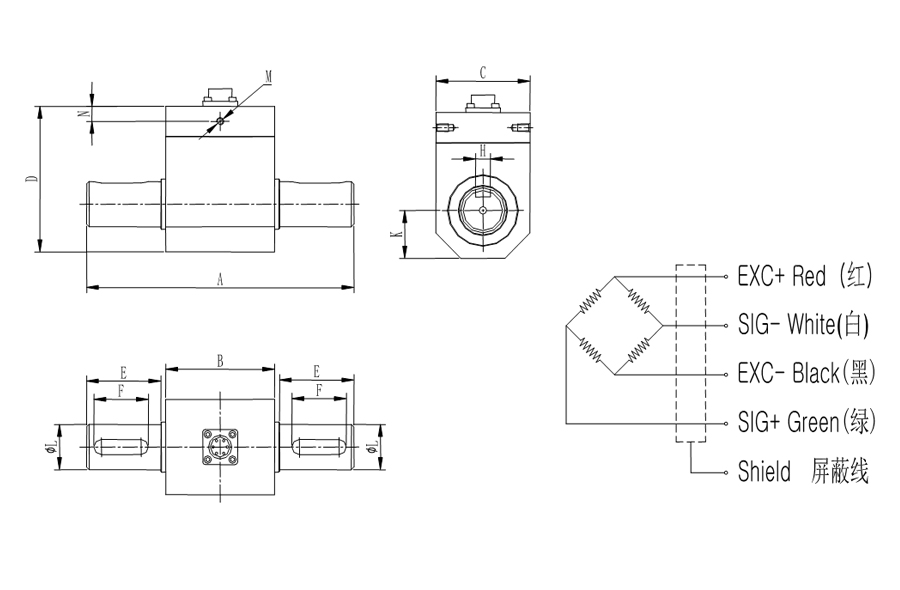

Cap（N.m） |
A |
ΦL |
B |
C |
D |
E |
F |
K |
N |
H |
M |
|
10~100 |
108 |
18 |
44 |
38 |
58 |
30 |
22 |
19 |
6 |
6 |
M3 |
|
200,500 |
143 |
28 |
56 |
53 |
73.5 |
40 |
30 |
27 |
6 |
8 |
M3 |
|
1000 |
221 |
36 |
97 |
90 |
125 |
60 |
55 |
45 |
33 |
16 |
M4 |
|
Specifications |
Technique |
|
Capacity |
10~1000N.m |
|
Rated output |
2.0±10%mV/V |
|
Combined Error |
0.2%F.S |
|
Non-linearity |
0.2%F.S. |
|
Hysteresis |
0.1%F.S. |
|
Repeatability |
0.1%F.S. |
|
Creep(30min) |
0.1%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
410±20Ω |
|
Output impedance |
350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
Φ4×4000mm |
|
Material |
aluminum alloy |
|
IP Class |
IP65 |
