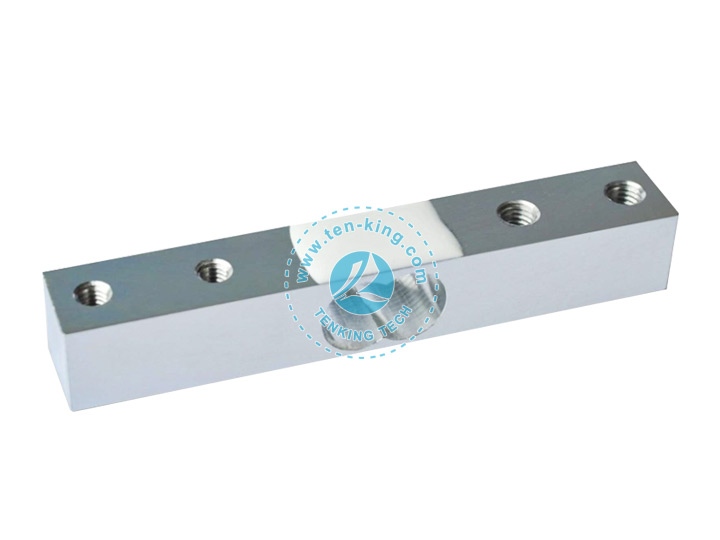

8121 Single point
Range: 1kg/2kg/3kg/5kg/6kg
Body material: aviation hard aluminum alloy
Comprehensive accuracy: 0.05%
Cable length: 0.25m
The 8121 is a high-precision box-type single-point weighing load cell with high precision and easy installation. It is often used in electronic kitchen scales, mechanical testing machines, electronic portable scales, and mechanical test models. It is a sensor structure for electronic kitchen scale applications. Widely used in anti-offset testing.
|
Specifications |
Technique |
|
Capacity |
1,2,3,5,6g |
|
Accuracy class |
C3 |
|
Rated output |
1.0±0.1mV/V |
|
Zero balance |
±0.05 mV/V |
|
Non-linearity |
0.05%F.S. |
|
Hysteresis |
0.05%F.S. |
|
Repeatability |
0.03%F.S. |
|
Creep(30min) |
0.03%F.S. |
|
Temp.effect on output |
0.05%F.S./10℃ |
|
Temp.effect on zero |
0.05%F.S./10℃ |
|
Input impedance |
405±20Ω |
|
Output impedance |
350±10Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~15V |
|
Operation temp range |
-10~50℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
4-Φ1×250mm |
|
IP Class |
IP65 |
|
Max.platform size |
200mm×200mm |
