5511 Tension and compression composite force sensor
Range:
F: 10/ 20/ 30/50kN
M: 300/500/700/1000N.m
Body material: alloy steel
Comprehensive accuracy: 0.1%
Cable length: 4m

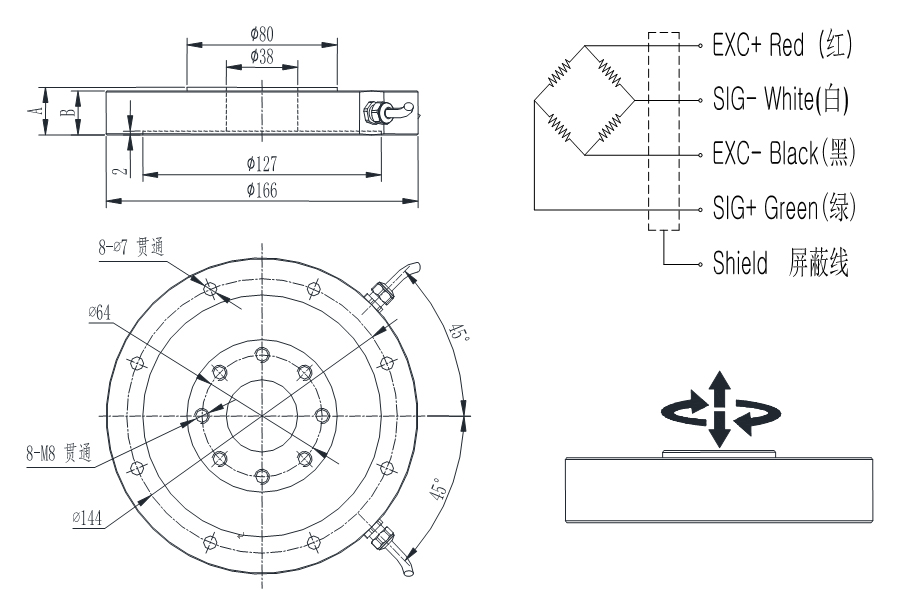

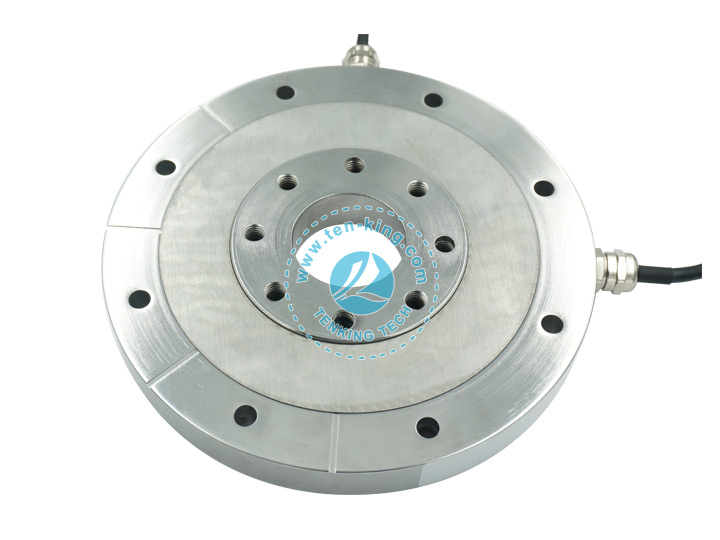

The 5501 is a sensor that measures tension and torque simultaneously. It is often used in applications where it is necessary to measure the simultaneous presence of force and torque during operation and to measure at the same time. The sensor compensates for forces and torques without mutual interference.
|
Cap（kN/N.m） |
A |
B |
|
10/300,20/500,30/700 |
25 |
23 |
|
50/1000 |
30 |
28 |
|
Specifications |
Technique |
|
Capacity |
F: 10/ 20/ 30/50kN M: 300/500/700/1000N.m |
|
Rated output |
1.0±20%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±0. 5mV/V |
|
Non-linearity |
0.5%F.S. |
|
Hysteresis |
0.5%F.S. |
|
Repeatability |
0.5%F.S. |
|
Creep(30min) |
0.2%F.S. |
|
Temp.effect on output |
0.2%F.S./10℃ |
|
Temp.effect on zero |
0.2%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
φ5×4000mm |
|
IP Class |
IP65 |
