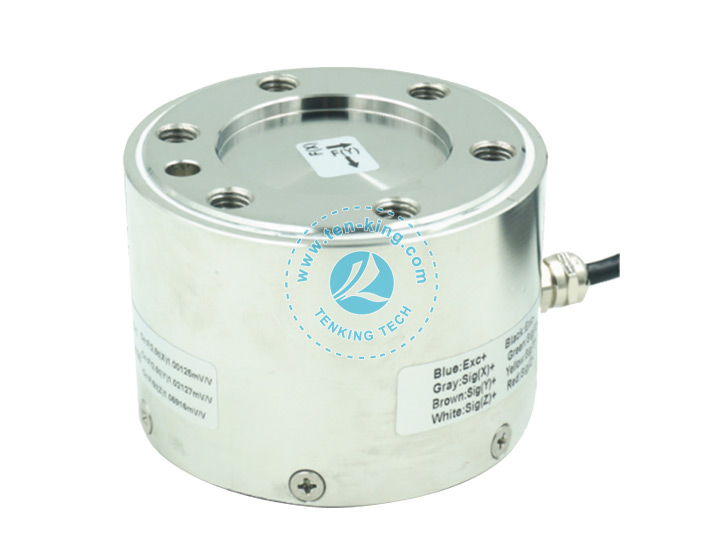

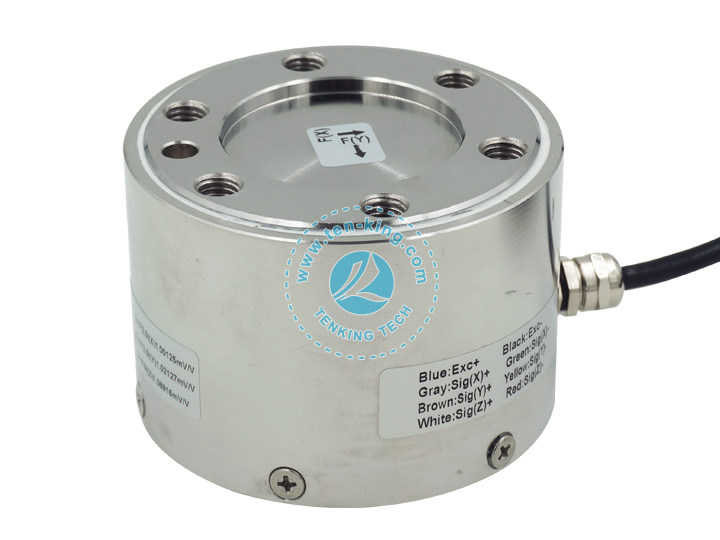

5101 Triaxial force sensor
Range:
X: 25/50 kN
Y: 25/50 kN
Z: 50/100 kN
Body material: alloy steel
Comprehensive accuracy: 2%
Cable length: 4m
The 5101 is a sensor that simultaneously measures the three axis forces in three dimensions. It is often used in applications where the three-dimensional space exists at the same time and needs to be measured at the same time. The sensor compensates for the three-direction forces without mutual interference.
|
Specifications |
Technique |
|
Capacity |
X: 25/50 kN Y: 25/50 kN Z: 50/100 kN |
|
Rated output |
1.0±20%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±0. 5mV/V |
|
Non-linearity |
0.5%F.S. |
|
Hysteresis |
0.5%F.S. |
|
Repeatability |
0.5%F.S. |
|
Creep(30min) |
0.2%F.S. |
|
Temp.effect on output |
0.2%F.S./10℃ |
|
Temp.effect on zero |
0.2%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
3×φ3×4000mm |
|
IP Class |
IP65 |
