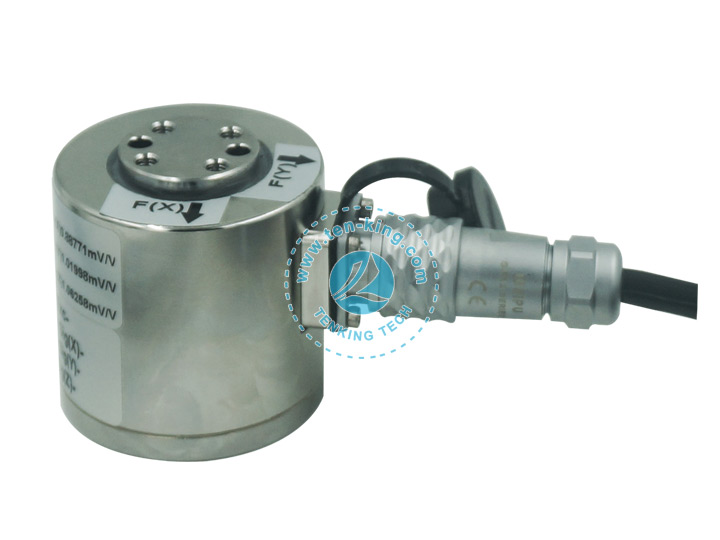

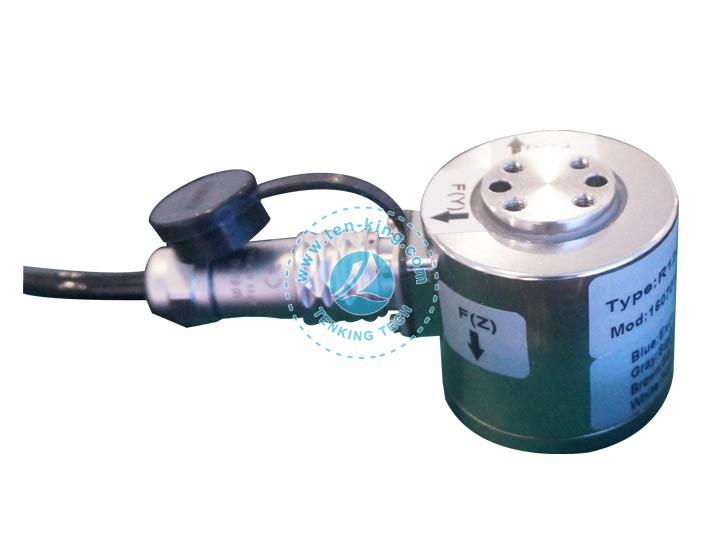

5011 Triaxial force sensor
Range:
X: 50/100/200/300/500
Y: 50/100/200/300/500
Z: 100/200/300/500/1000
Body material: stainless steel
Comprehensive accuracy: 3%
Cable length: 4m
The 5011 is a sensor that simultaneously measures the three axis forces in three dimensions. It is often used in applications where the three-dimensional space exists at the same time and needs to be measured at the same time. The sensor compensates for the three-direction forces without mutual interference.
|
Specifications |
Technique |
|
Capacity |
X: 50/100/200/300/500 |
|
Rated output |
1.0±20%mV/V |
|
Combined Error |
0.5%F.S |
|
Zero balance |
±0. 5mV/V |
|
Non-linearity |
0.5%F.S. |
|
Hysteresis |
0.5%F.S. |
|
Repeatability |
0.5%F.S. |
|
Creep(30min) |
0.2%F.S. |
|
Temp.effect on output |
0.2%F.S./10℃ |
|
Temp.effect on zero |
0.2%F.S./10℃ |
|
Input impedance |
~1000Ω |
|
Output impedance |
~1000Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5~12V |
|
Operation temp range |
-20~80℃ |
|
Safe overload |
150%F.S. |
|
Cable size |
3×φ3×4000mm |
|
IP Class |
IP65 |
